How TMT Rebar Thread Cutting Works for Couplers

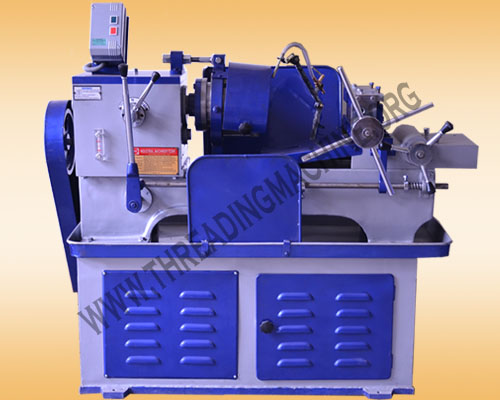

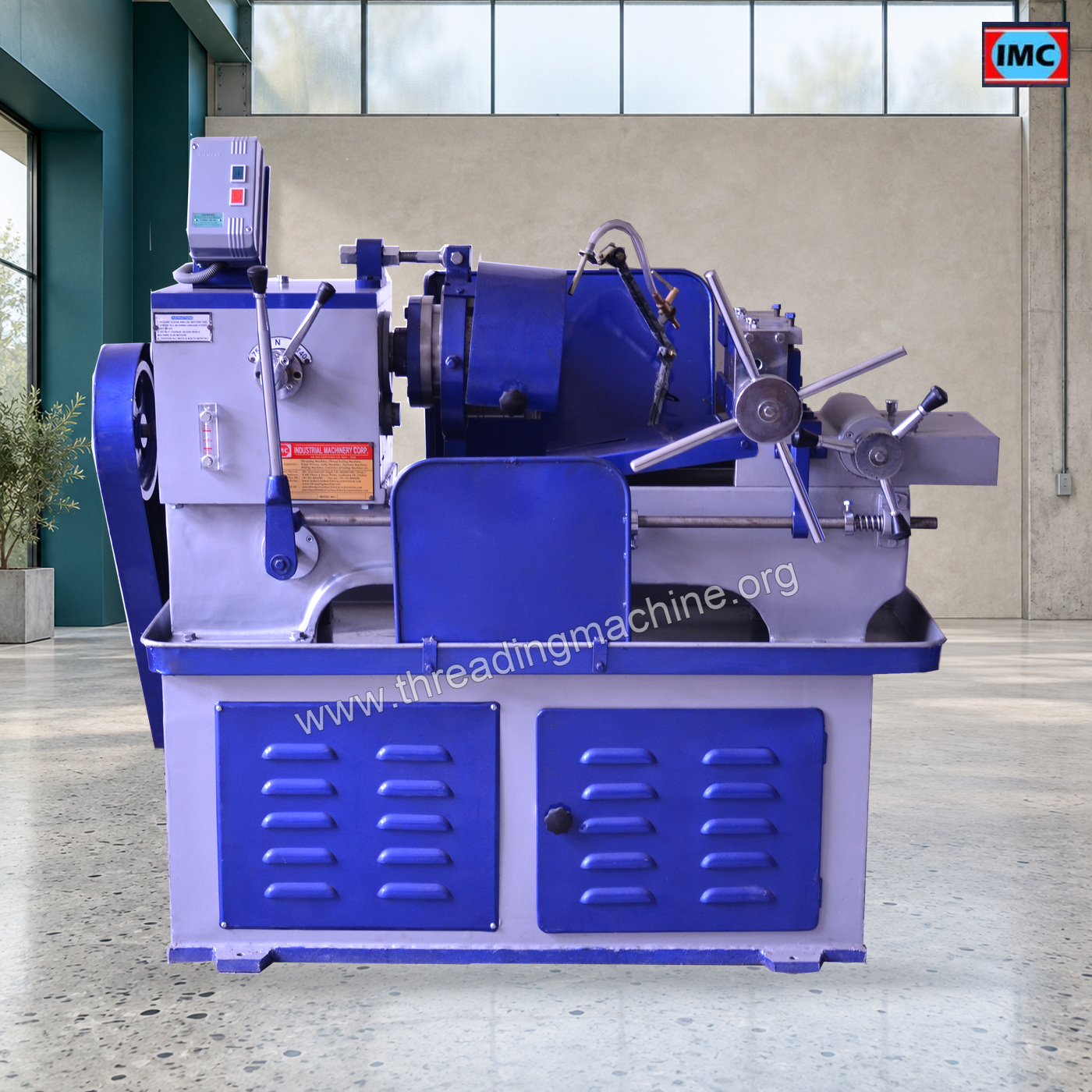

TMT Rebar Thread Cutting Machine by Industrial Machinery Corporation
PRICE & QUOTATION
Starting From US$ 4,000
Choose options
Set quantity
Request quotation

Select the required model and specifications to request your quotation.

This guide explains the working process and selection of TMT Rebar Thread Cutting Works for Couplers.

Understand the working process

The purpose of this configuration is to cut the specified external coupler thread on suitably prepared TMT reinforcement-bar ends. The prepared TMT bar end is cut with compatible threading tools to produce the external profile required by the intended coupler system. The process begins with a suitable component or starting stock and a defined result. Before selecting equipment, identify rebar grade and diameter, prepared-end drawing, coupler standard, pitch and thread length. These requirements establish the operation to be performed and the information needed for the setup.

Review the setup sequence

The tooling and holding discussion includes bar preparation, threading tools, workholding and support for the full bar length. Check compatibility and the supplied operating guidance before starting a new job or changing a component size. Identify the coupler system and preparation route so the thread-cutting stage is matched to the required connection. Preparation and any following production stage must be considered separately where the finished component needs additional work.

Check the result and select the model

The component review should cover thread dimensions, gauge acceptance and engagement with the intended coupler. Agree the inspection requirements for a representative sample before comparing output estimates. Consult the specifications below and discuss the drawing and material with IMC. Select the available options and use the Quote List to request a configuration with clearly identified tools and accessories. This working overview supports selection; follow the instructions supplied for the actual machine.

Information to send with your enquiry

  • Rebar grade and diameter
  • Prepared-end drawing
  • Coupler standard
  • Pitch and thread length

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Tags

tmt bar threading machines, Steel TMT Chaser Rebar Threading Machine, Semi automatic TMT Bar Threading Machine, TMT Rebar Threading Machine
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Available Options


Review your selected machine and options in the Quote List before sending your requirement.

Product Videos

View full playlist on YouTube
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

Industrial Machinery Corporation got incorporated in the year 2011 in Ludhiana, Punjab. 11 years in the business venture has helped us to procure a legitimate position in the market and we are the main name in the field of manufacturing, trading, and providing a wide range of items which incorporate Threading Machines, Thread Rolling Machine, TMT Rebar Thread Cutting Machine, Hydraulic Thread Rolling Machine, Automatic Cold Heading Machine, Automatic Bolt Head Trimming Machine, Automatic Cold Thread Rolling Machine, Scaffolding Machinery, Rebar Forging Machine and some more. The items are generally valued and have been effective in making a distinct position in the market as they are planned precisely to guarantee to idealize smallness and outline. The Supreme range is acclaimed for being worked with best-grade material and simple accessibility in changed sizes. We have bagged ISO 9001:2008 Certification inferable from our adherence to industry regulations and different other activities which help us in delivering quality items to customers spread everywhere throughout the world.

We offer a wide range of TMT Rebar Thread Cutting Machine which is used for site works and it does external threading on TMT bars. The threading is finished after the TMT bar forging process. TMT Rebar Threading Machine is made from high-quality raw materials. Threads that can be cut using TMT Rebar Threading Machine: Matric, BSP, BSPT, NPT, UNF, UNC, BSW, Acme Threads, B.S.F. TMT Rebar Thread Cutting Machine has features like robust construction, high performance, and durability.

TMT Rebar Thread Cutting Machine Specifications:
Model 1/4" to 1" (Bed Type)3/8" to 1.1/2" (Bed Type) 1/2" to 2.1/2" (Bed type)
Saddle Movement10"13"22"
Spindle Speed Range75-14075-14045-90
Number of Spindle Speed223
Threading Capacity1/4" to 1"3/8" to 1.1/2"1/2" to 2.1/2"
Production per Hour60-8060-8070-90
H.P. Required3 H.P.3 H.P.7.5 H.P.
Lead ScrewOptionalOptionalOptional
Weight (KG) Approx.500550990

Frequently Asked Questions About TMT Rebar Thread Cutting Machine

Confirm the preparation sequence, finished thread dimensions and inspection criteria against the intended connection specification.

Include bar size, grade and coupler thread, the finished component drawing and the quantity you intend to produce. These details help IMC review the machine and tooling together.

TMT reinforcement-bar ends are cut with threads for the specified mechanical connection.
