How a Conduit Pipe Threading Machine Works

Electric Conduit Pipe Thread Cutting Machine by Industrial Machinery Corporation
PRICE & QUOTATION
Starting From US$ 3,500
Choose options
Set quantity
Request quotation

Select the required model and specifications to request your quotation.

This guide explains the working process and selection of Conduit Pipe Threading Machine.

Understand the working process

The purpose of this configuration is to cut external threads on compatible conduit pipe ends for the specified threaded fittings. The matched cutting tools generate the conduit-end thread that engages the specified fitting; holding and tool selection account for the actual pipe section. The process begins with a suitable component or starting stock and a defined result. Before selecting equipment, identify conduit material, diameter, wall section, thread designation and fitting details. These requirements establish the operation to be performed and the information needed for the setup.

Review the setup sequence

The tooling and holding discussion includes pipe holding without unsuitable deformation, compatible chasers and end support. Check compatibility and the supplied operating guidance before starting a new job or changing a component size. Check the actual conduit and connection drawing; a general pipe-threading size does not identify every conduit system. Preparation and any following production stage must be considered separately where the finished component needs additional work.

Check the result and select the model

The component review should cover thread engagement with the intended fitting and the required thread length. Agree the inspection requirements for a representative sample before comparing output estimates. Consult the specifications below and discuss the drawing and material with IMC. Select the available options and use the Quote List to request a configuration with clearly identified tools and accessories. This working overview supports selection; follow the instructions supplied for the actual machine.

Information to send with your enquiry

  • Conduit material
  • Diameter
  • Wall section
  • Thread designation and fitting details

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Tags

Electric Conduit Pipe Threading Machine, Electric Pipe Threading Machine at Best Price in India, Conduit Pipe Threading Machine, electric pipe threading machine price, automatic pipe threading machine, electric pipe threading machine price in india, automatic pipe threading machine, best pipe threading machine, manual pipe threading machine, gi pipe electric threading machine, best manufacturer of threading machine in ludhiana
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Available Options


Review your selected machine and options in the Quote List before sending your requirement.

Product Videos

View full playlist on YouTube
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

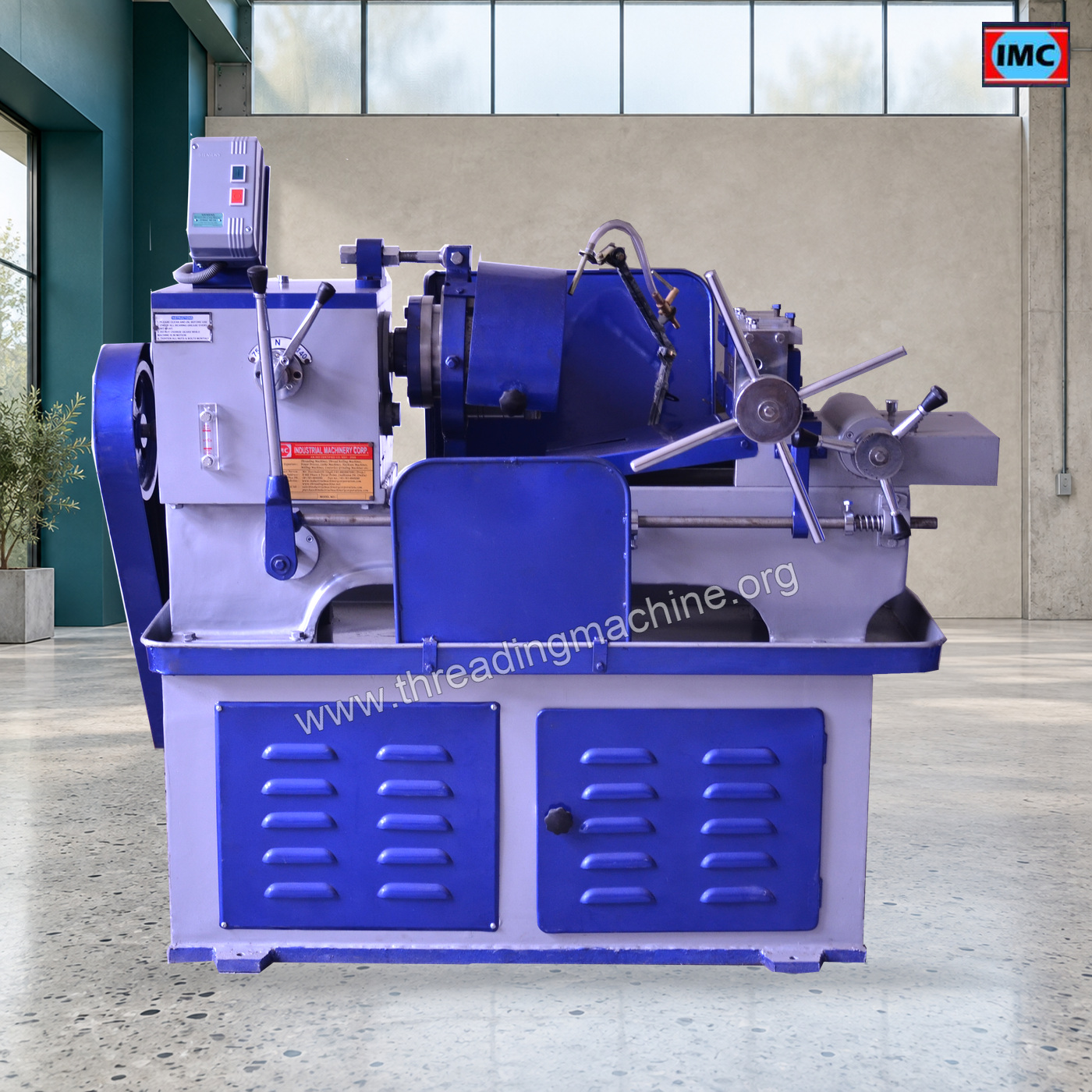

Electric Conduit Pipe Thread Cutting Machine is used to thread the external area of the conduit pipes. IMC Machines are highly specialized and can be used solely for industry-specific purposes. There are only a few companies in the world that fabricate this particular type of machine.

One company that has won much acclaim in the area of conduit pipe threading machines. We have a large range of threading machines. The company has immense experience in the field of such machines. Also the same to ensure that the customers get value for the money that they are spending.

The material used for the purpose of fabrication is of high grade. There is an absolute assurance that there will be no issues during usage. If one chooses to purchase a conduit pipe threading machine from a company that is reputed as the Industrial Machinery Corporation. The demand for these machines has grown manifold in the past few years.

A quality product always stands out in the market, and will always be able to create a niche for itself. This is exactly why this electric conduit pipe threading machine, unlike several others, has been able to satiate the requirements of numerous big organizations, by providing them with efficient and relatively maintenance-free service.


Electric Conduit Pipe Thread Cutting Machine Specifications :

MODEL1/4" TO 1" (BED TYPE)3/8" TO 1.1/2" (BED TYPE)1/2" TO 2.1/2" (BED TYPE)
Saddle Movement10"13"22"
Spindle Speed Range75-14075 -14045 - 90
Number of Spindle Speed222
Threading Capacity1/4" to 1"3/8" to 1.1/2"1/2" to 2.1/2"
Production per Hour60-8060-8070-90
H.P. Required3 H.P.3 H.P.7.5 H.P.
Lead ScrewOptionalOptionalOptional
Weight (KG) Approx.500550990
"

Frequently Asked Questions About Electric Conduit Pipe Thread Cutting Machine

Provide the actual connection standard and tube dimensions. Tooling should be confirmed against the required conduit thread rather than a general pipe description.

Include conduit material and connection standard, the finished component drawing and the quantity you intend to produce. These details help IMC review the machine and tooling together.

Conduit ends are threaded to match the specified electrical conduit connection.
