How a Portable Pipe Threading Machine Works

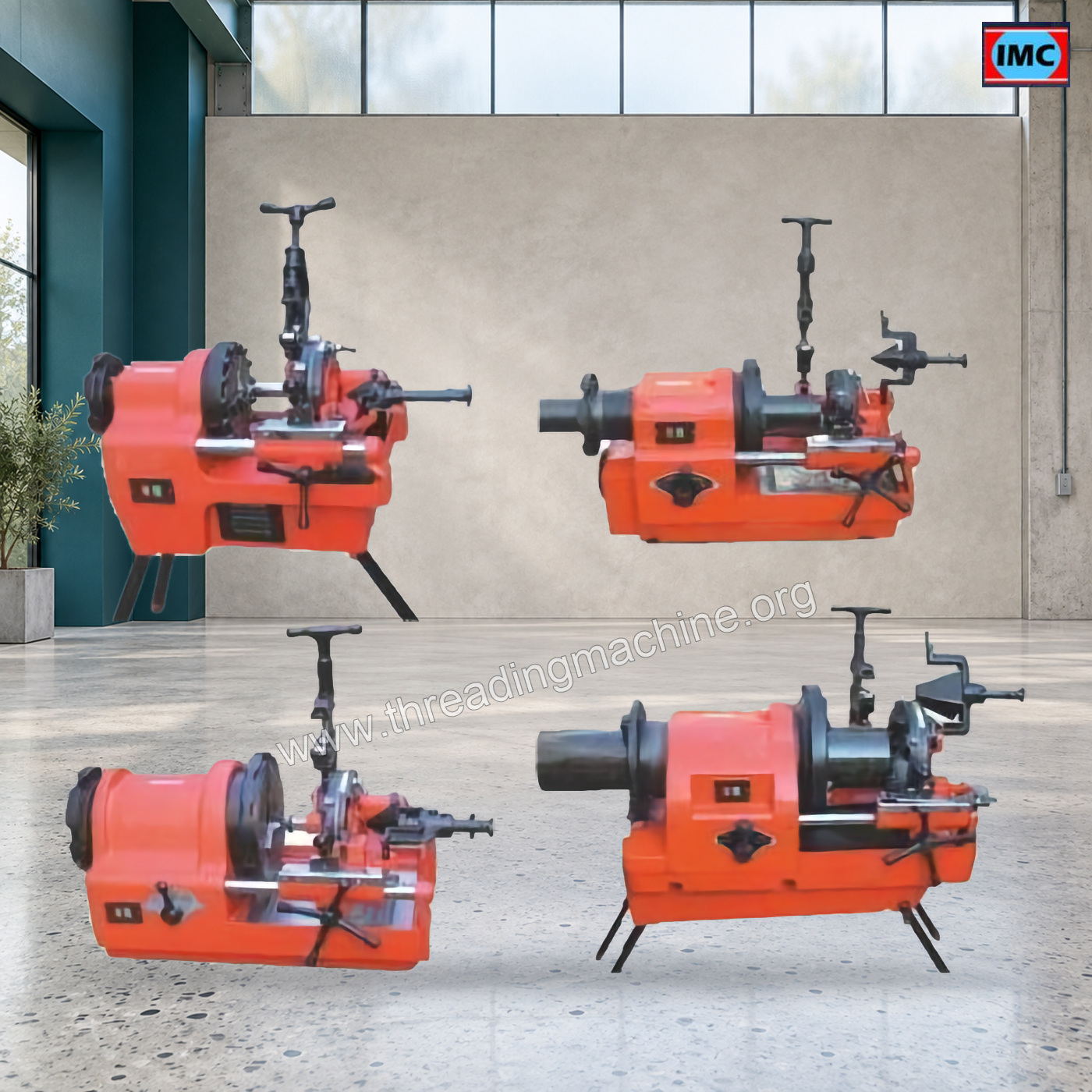

Portable pipe threading machine with pipe holding and threading assembly

Portable pipe threading machine with pipe holding and threading assembly thumbnail

This guide explains the working process and selection of Portable Pipe Threading Machine.

Understand the working process

The purpose of this configuration is to cut pipe threads with a portable pipe-threading setup and compatible dies. Compatible threading dies cut the pipe-end profile; the selected model determines the drive, holding and support arrangement. The process begins with a suitable component or starting stock and a defined result. Before selecting equipment, identify pipe material, size, wall thickness, thread designation and available site power. These requirements establish the operation to be performed and the information needed for the setup.

Review the setup sequence

The tooling and holding discussion includes the supplied die set, secure pipe holding, pipe supports and the model's working range. Check compatibility and the supplied operating guidance before starting a new job or changing a component size. Portability does not remove the need for stable workholding and sufficient support for the pipe being threaded. Preparation and any following production stage must be considered separately where the finished component needs additional work.

Check the result and select the model

The component review should cover thread length, connection fit and the inspection specified for the pipe joint. Agree the inspection requirements for a representative sample before comparing output estimates. Consult the specifications below and discuss the drawing and material with IMC. Select the available options and use the Quote List to request a configuration with clearly identified tools and accessories. This working overview supports selection; follow the instructions supplied for the actual machine.

Information to send with your enquiry

Pipe material
Size
Wall thickness
Thread designation and available site power

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Min And Max Diameter of the Job

Expected Price

Thread Type

Purchase

Review your selected machine and options in the Quote List before sending your requirement.

VIDEO REFERENCE

Machine Videos Gallery

No product-specific playlist is stored for this item yet. View IMC machine demonstrations and production videos in the main gallery.

View Machine Videos

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

Model Specifications

Model	IMC-1/2" to 2"	IMC-1/2" to 3"	IMC-1/2" to 4"	IMC-2.1/2" to 6"
Sizes For Pipes (Inches)	1/2" to 2"	1/2" to 3"	1/2" - 4"	2.1/2" to 6"
Specification	230V/50 Hz. , 750W, 27RPM	230V/50 Hz. , 750W, 26/11RPM	230V/50 Hz. , 750W, 26/10RPM	230V/50 Hz. , 750W, 26/10RPM
Die-Head Included	1/2" - 2"	1/2" - 2" & 2.1/2" - 3"	1/2" - 2" & 2.1/2"- 4"	2.1/2" - 4" & 5"- 6"
Dies Included(Inches) BSPT or NPT	1/2" - 3/4" & 1 "-2"	1/2" - 3/4", 1 "-2" & 2.1/2" -3"	1/2" - 3/4", 1 "-2" & 2.1/2" -4"	2.1/2" - 4" & 5"- 6"
Weight	81 Kgs.	135 Kgs.	150 Kgs.	215 Kgs

Portable Pipe Threader Demonstration

Frequently Asked Questions About Portable Pipe Threading Machine

Does the largest model also cover half-inch pipe?

The listed 2.5 to 6 inch configuration begins at 2.5 inches. For a project that also uses smaller pipes, discuss the full range and tooling package before selecting equipment.

Which thread standard should I specify?

Identify whether the fittings require BSPT or NPT, together with pipe designation and thread length. The dies and inspection requirement must match the intended assembly.

Can the machine be carried by one operator?

Listed model weights range from 81 to 215 kg. Plan appropriate handling and transport arrangements rather than assuming that portable means suitable for manual lifting.

What electrical supply is listed?

The model table specifies 230 V, 50 Hz and 750 W. Confirm the supplied configuration and site connection requirements with IMC before installation.

What details help obtain a complete quotation?

Provide pipe sizes, material and schedule, thread standard, expected batch volume, power supply and destination. Identify any stands, supports or additional die sets needed.
