How a Portable Pipe & Bolt Threading Machine Works

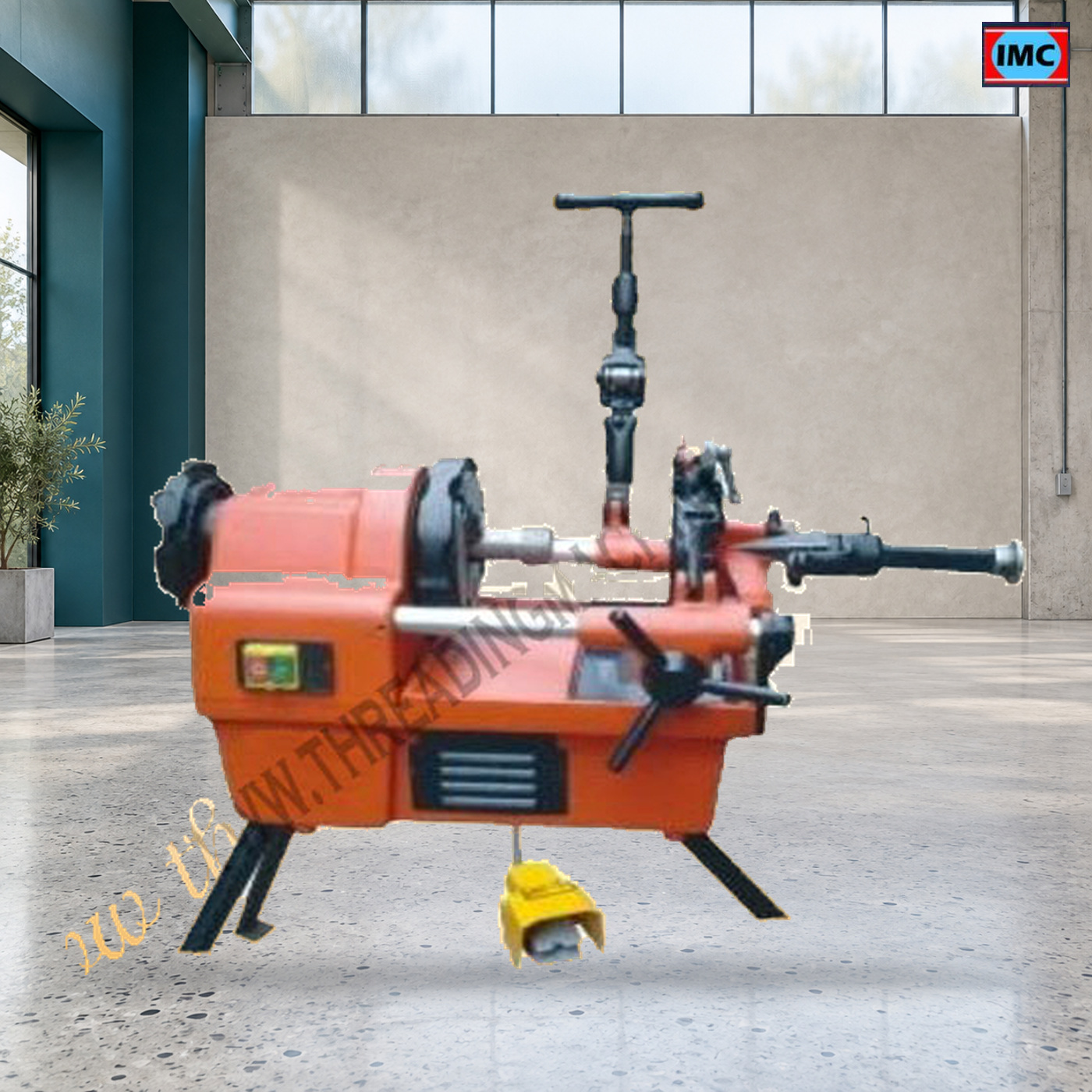

Portable Pipe & Bolt Threading Machine product view

Portable Pipe & Bolt Threading Machine product view thumbnail

This guide explains the working process and selection of Portable Pipe & Bolt Threading Machine.

Understand the working process

The purpose of this configuration is to prepare external threads on compatible pipe and bolt workpieces with appropriate threading tools. Cutting dies generate the external thread. Pipe and bolt work require tooling and holding arrangements suited to their different sections and thread forms. The process begins with a suitable component or starting stock and a defined result. Before selecting equipment, identify pipe and bolt sizes, materials, thread forms, lengths and site utilities. These requirements establish the operation to be performed and the information needed for the setup.

Review the setup sequence

The tooling and holding discussion includes the separate tooling required for pipe and bolt jobs, holding arrangements and size changeovers. Check compatibility and the supplied operating guidance before starting a new job or changing a component size. List pipe and bolt work separately so that the quotation identifies the dies and accessories for each application. Preparation and any following production stage must be considered separately where the finished component needs additional work.

Check the result and select the model

The component review should cover the pipe connection thread and bolt thread against their respective drawings. Agree the inspection requirements for a representative sample before comparing output estimates. Consult the specifications below and discuss the drawing and material with IMC. Select the available options and use the Quote List to request a configuration with clearly identified tools and accessories. This working overview supports selection; follow the instructions supplied for the actual machine.

Information to send with your enquiry

Pipe and bolt sizes
Materials
Thread forms
Lengths and site utilities

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Thread Type

Purchase

Min And Max Diameter of the Job

Expected Price

Review your selected machine and options in the Quote List before sending your requirement.

VIDEO REFERENCE

Machine Videos Gallery

No product-specific playlist is stored for this item yet. View IMC machine demonstrations and production videos in the main gallery.

View Machine Videos

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

Portable Pipe & Bolt Threading Machine

A Portable Pipe & Bolt Threading Machine is more often than not, fitted with a system that is truly advanced. This allows for the machine to function not just smoothly, but also in a manner that is hassle free. High level quality processes and constant checks also ensure that the amount of money and time spent on maintenance is minimal. Apart from this, there is also the guarantee that the ultimate output offered will be on the higher side.

Some of the signs of a good and reliable portable pipe & bolt threading machine would be that it incorporates features such as a resistance to abrasion and water. The machines have been built to withstand wear and tear as well as breakage. This ensures that whoever invests in this machine, receives full value for the money spent.

Companies like Industrial Machinery Corporation offer portable pipe & bolt threading machine that are fabricated in accordance with the specifications provided by the customer. These include sizes for pipes, bolts, conduits etc.

Portable Pipe & Bolt Threading Machine Specifications

Portable Pipe and Bolt Threading Machine Specifications

Model No.	IMC-PPBTM-1/2" to 2"
Sizes for Pipe (Inches)	1/2" to 2"
Sizes for Bolts	13/8" - 2 & 10 MM - 33MM
Sizes for Conduits	1/2" - 2 & 19MM - 30 MM
Specifications	230V/50 Hz., 750W, 27 RPM
Die-Head(Inch.)	1/2" - 2
Dies Including (Inch.) BSPT or NPT	1/2" - 3/4" & 1 - 2"
Approx. Wt. of the Machine	62 Kgs.

Frequently Asked Questions About Portable Pipe & Bolt Threading Machine

Can one tooling set cover pipes and bolts?

Do not assume it can. Identify both thread standards and ask which die heads, dies and accessories cover the planned jobs.

What should I send when enquiring about portable pipe & bolt threading machine?

Include site supply and the pipe and bolt ranges, the finished component drawing and the quantity you intend to produce. These details help IMC review the machine and tooling together.

What operation does this portable pipe & bolt threading machine support?

Portable equipment combines pipe and bolt threading capability in a format suited to moving between jobs.
