How a Pipe End Facing Machine Works

Pipe End Facing Machine by Industrial Machinery Corporation

Pipe End Facing Machine by Industrial Machinery Corporation thumbnail

This guide explains the working process and selection of Pipe End Facing Machine.

Understand the working process

The purpose of this configuration is to prepare pipe ends through the specified facing, chamfering or deburring operation. The cutters machine the specified end surfaces; facing, chamfering and deburring are selected according to the required finished pipe-end drawing. The process begins with a suitable component or starting stock and a defined result. Before selecting equipment, identify pipe material, diameter, wall thickness and the finished end-profile drawing. These requirements establish the operation to be performed and the information needed for the setup.

Review the setup sequence

The tooling and holding discussion includes cutters, pipe holding, end location and access to the surfaces being prepared. Check compatibility and the supplied operating guidance before starting a new job or changing a component size. Show the required end profile clearly; facing, chamfering and deburring are related but distinct operations. Preparation and any following production stage must be considered separately where the finished component needs additional work.

Check the result and select the model

The component review should cover face geometry, chamfer dimensions where required and removal of unwanted burrs. Agree the inspection requirements for a representative sample before comparing output estimates. Consult the specifications below and discuss the drawing and material with IMC. Select the available options and use the Quote List to request a configuration with clearly identified tools and accessories. This working overview supports selection; follow the instructions supplied for the actual machine.

Information to send with your enquiry

Pipe material
Diameter
Wall thickness and the finished end-profile drawing

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Min And Max Diameter of the Job

Maximum Length Required

Expected Price

Purchase

Review your selected machine and options in the Quote List before sending your requirement.

VIDEO REFERENCE

Machine Videos Gallery

No product-specific playlist is stored for this item yet. View IMC machine demonstrations and production videos in the main gallery.

View Machine Videos

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

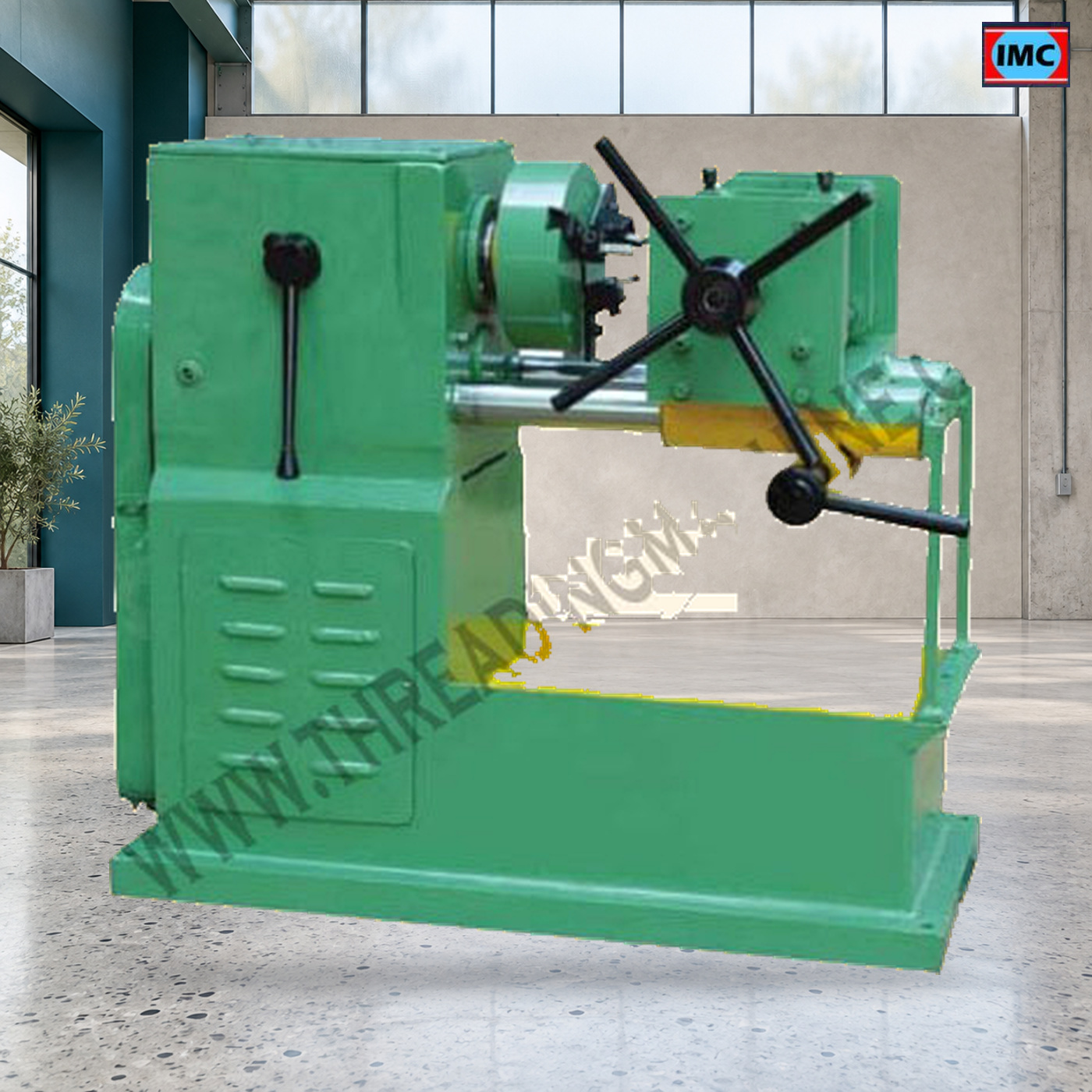

Pipe End Facing Machine

Industrial Machinery Corporation is a widely known name in the world of industrial machine manufacturers and has been engaged in designing to exporting various industrial machines since 2011. We have a huge list of clients for every type of machine that we produce and these clients range mainly from countries like the USA, Mexico, Brazil, Venezuela, Ecuador, Korea, Turkey, India, UAE, Malaysia, Indonesia, Iran, Uzbekistan, Kazakhstan, Vietnam, Cambodia, Thailand, Syria, Jordan, Pakistan, Kuwait, Iraq, Nigeria, Egypt, Sudan, Ethiopia, Kenya, Tunis, South Africa, Ukraine, Russia, Belarus, Italy, Belgium, Macedonia, and Greece. In our vast range of products, one machine that has gained huge popularity is the pipe end facing machine for which we are acknowledged as the best manufacturers. Our machines have all the qualities like durability, effectiveness, handiness, competency, efficiency, toughness, and portability, and these all qualities have made our pipe end facing machine, the most sold pipe end facing machine in the business.

Our pipe end facing machine is used to chamfer or debarring of the pipes before they are sent for processes of galvanizing and threading. There are three tools fitted in our pipe end facing machine which makes it chamfer the pipes from in, out and front. The pipe in our Pipe End Facing Machine remains motionless and the facing head rotates. In a manual procession of a Pipe End Facing Machine, the slide moves towards the facing head for the chamfering process.

Following are some most prominent silent features of Pipe End Facing Machines manufactured by industrial machinery corporation:

Handy portable and powerful tool
Saves Customer’s time and money
Self align design that enables the tool to mount in to the pipe ID with better grip
Quick interchangeable designs of pilot to suit wide range of pipe ID
Modular & Ergonomic design allows the tool to be used in confined space
Offers high efficiency
Durable
Effortless operation, can be easily operated by single person
Available in different models and weight

Following are some of the notable features of pipe end facing machine made by industrial machinery corporation which distinguishes our machine from all pipe end facing machine present in the market of industrial machines today:

Pipe End Facing Machine consists of a gear driven cutter wheel with three major tool holders attached like a tool following wheel, a tool assembly and a tool actuating spring
Our Machines has the technique to cut accurate and precise bevels on heavy as well as thin-walled pipe ends to prepare any joint for welding
Our Pipe End Facing Machine is operated using hydraulic power and uses a positive gear driven down with the motive of cutting accurate and précised bevels
Our machine is available in different variants of pipe sizes such as 16” [404 millimeters] to 60” [1524 millimeters]
Apart from running by hydraulic power, this machine also comes in diesel and electric running mode

Mentioned below are the names of various parts and tools that are combined together to make one finest quality pipe end facing machine:

Base
Head stock
Saddle
Clamping vice

Specifications:

Model No.	IMC-EM- 1/2" to 1.1/2"	IMC-BM-1/2" to 4"
Min. Dia of Pipe to be Chamfered	1/2" N.B. Pipe	1/2""
Max. Dia of Pipe to be Chamfered	1.1/2"	4"
Cutting Tools Required (HSS 10% Cobalt)	3/8"	3/8"
Number of Spindle Speeds	Two nos.	Four nos.
Range of Spindle Speeds	37 to 64 RPM	68 to 180 RPM
Main Motor	3 H.P. 1440 RPM	3 H.P. 1440 RPM
Approx. Wt. of the Machine	750 Kgs.	1100 Kgs.

Frequently Asked Questions About Pipe End Facing Machine

Can end facing be specified separately from beveling?

Yes. State whether a square face, bevel or another profile is required. Confirm which end-preparation operations the proposed configuration includes.

What should I send when enquiring about pipe end facing machine?

Include pipe dimensions and end-face requirements, the finished component drawing and the quantity you intend to produce. These details help IMC review the machine and tooling together.

What operation does this pipe end facing machine support?

Pipe ends are faced to prepare a defined end surface before joining or further machining.
