How a Coil Rod Straightening & Cutting Machine Works

Wire Straightening and Cutting Machine by Industrial Machinery Corporation

This guide explains the working process and selection of Coil Rod Straightening & Cutting Machine.

Understand the working process

The purpose of this configuration is to straighten suitable wire, coil rod or coil bar and cut it to specified lengths. Coiled stock passes through the straightening and feeding stages before the cutting arrangement separates the specified piece length. The process begins with a suitable component or starting stock and a defined result. Before selecting equipment, identify material grade, stock diameter, coil condition, cut length and straightness requirement. These requirements establish the operation to be performed and the information needed for the setup.

Review the setup sequence

The tooling and holding discussion includes coil handling, straightening settings, feeding and the cutting arrangement. Check compatibility and the supplied operating guidance before starting a new job or changing a component size. Coil rod and coil bar compatibility must be assessed against the actual material and section rather than their names alone. Preparation and any following production stage must be considered separately where the finished component needs additional work.

Check the result and select the model

The component review should cover cut length, straightness and the surface condition of the finished pieces. Agree the inspection requirements for a representative sample before comparing output estimates. Consult the specifications below and discuss the drawing and material with IMC. Select the available options and use the Quote List to request a configuration with clearly identified tools and accessories. This working overview supports selection; follow the instructions supplied for the actual machine.

Information to send with your enquiry

  • Material grade
  • Stock diameter
  • Coil condition
  • Cut length and straightness requirement

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Tags

Wire Straightening And Cutting Machine, Industrial machinery, Industrial machinery Manufacturer in India, Machinery Exporter in India, India, Ludhiana Punjab India, wire straightening and cutting machine in india, wire straightening and cutting machine price in india, wire straightening machine price
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Available Options


Review your selected machine and options in the Quote List before sending your requirement.

Product Videos

View full playlist on YouTube
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

IMC wire straightening and cutting machines are used to straighten and cut wire into precise lengths for use in a wide range of applications. These machines are commonly used in industries such as construction, manufacturing, and electrical engineering, where precise cuts and consistent lengths are essential for ensuring product quality and safety.

IMC wire straightening and cutting machines typically consist of a series of rollers and cutting blades that work together to straighten and cut wire quickly and accurately. The wire is fed through the machine, where it is straightened and then cut to the desired length using the cutting blades.

These machines may also feature advanced controls and monitoring systems to ensure that the wire is cut to precise lengths and that the machine operates safely and efficiently. Some models may also feature automatic feeding and cutting systems to further increase productivity and reduce downtime.

Overall, IMC wire straightening and cutting machines are essential tools for anyone working with wire in the construction or manufacturing industries. With the right machine and proper technique, it's possible to produce wire that is straight, consistent, and precise, ensuring that products are of the highest quality and meet the strictest industry standards.

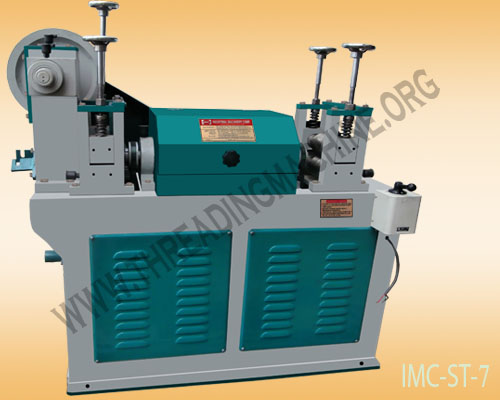

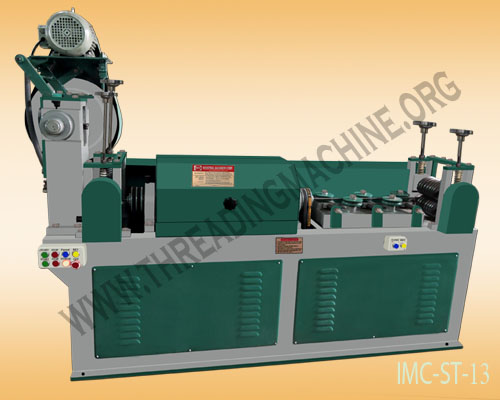

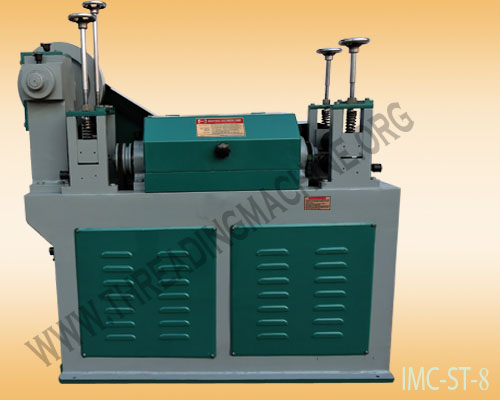

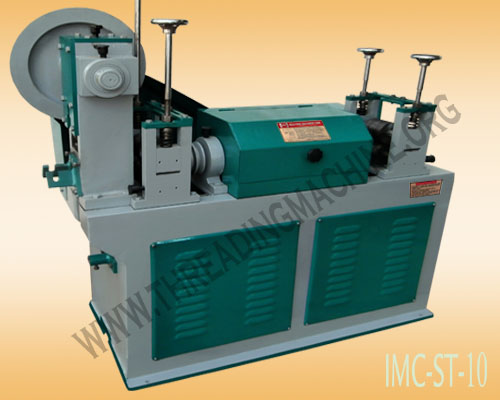

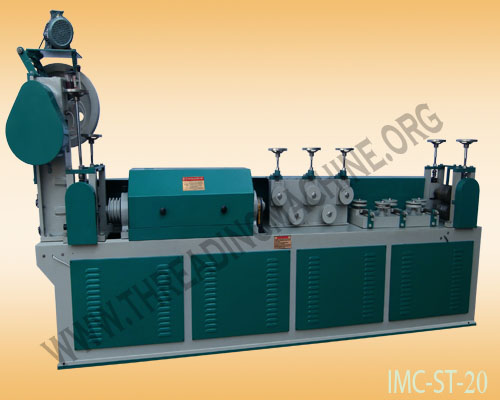

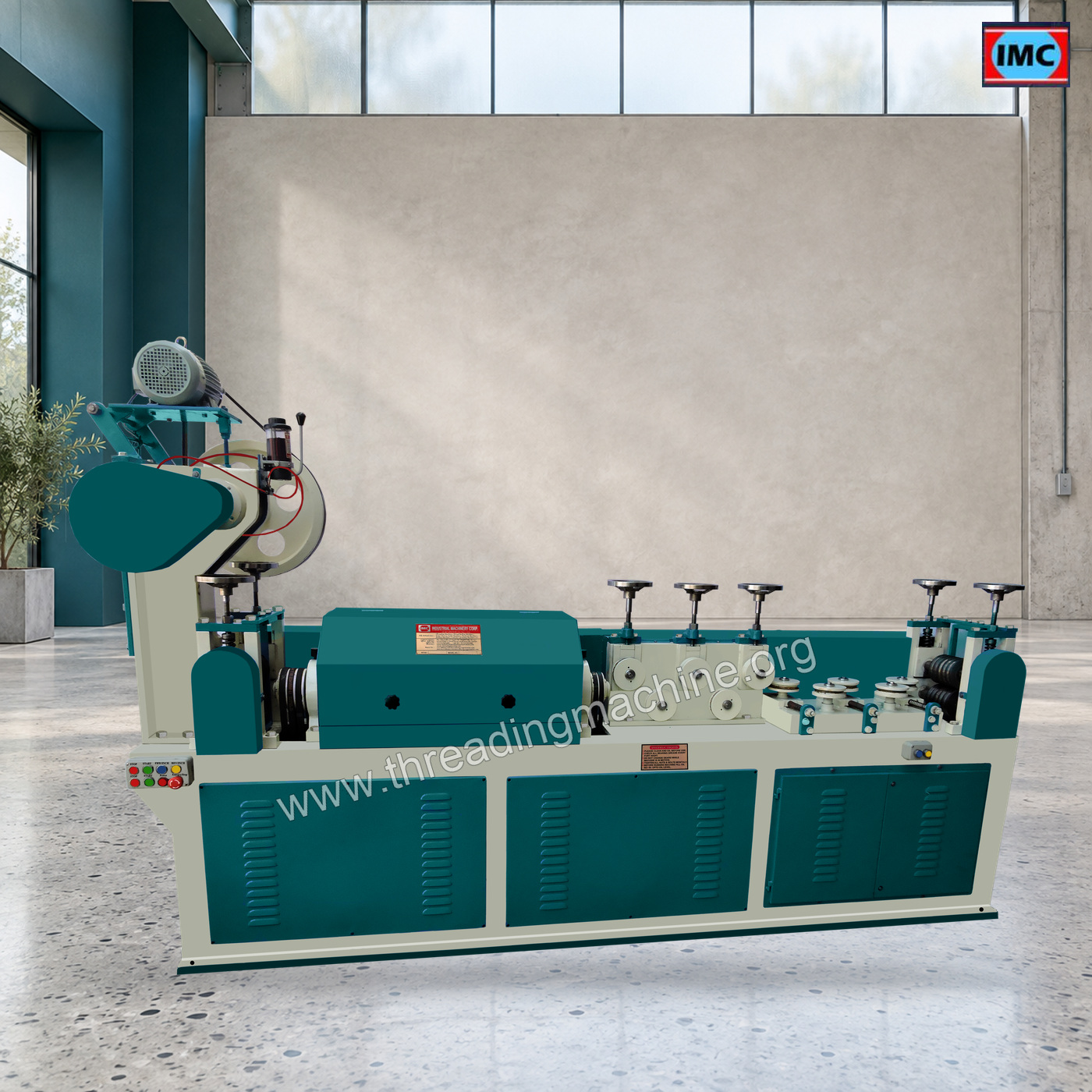

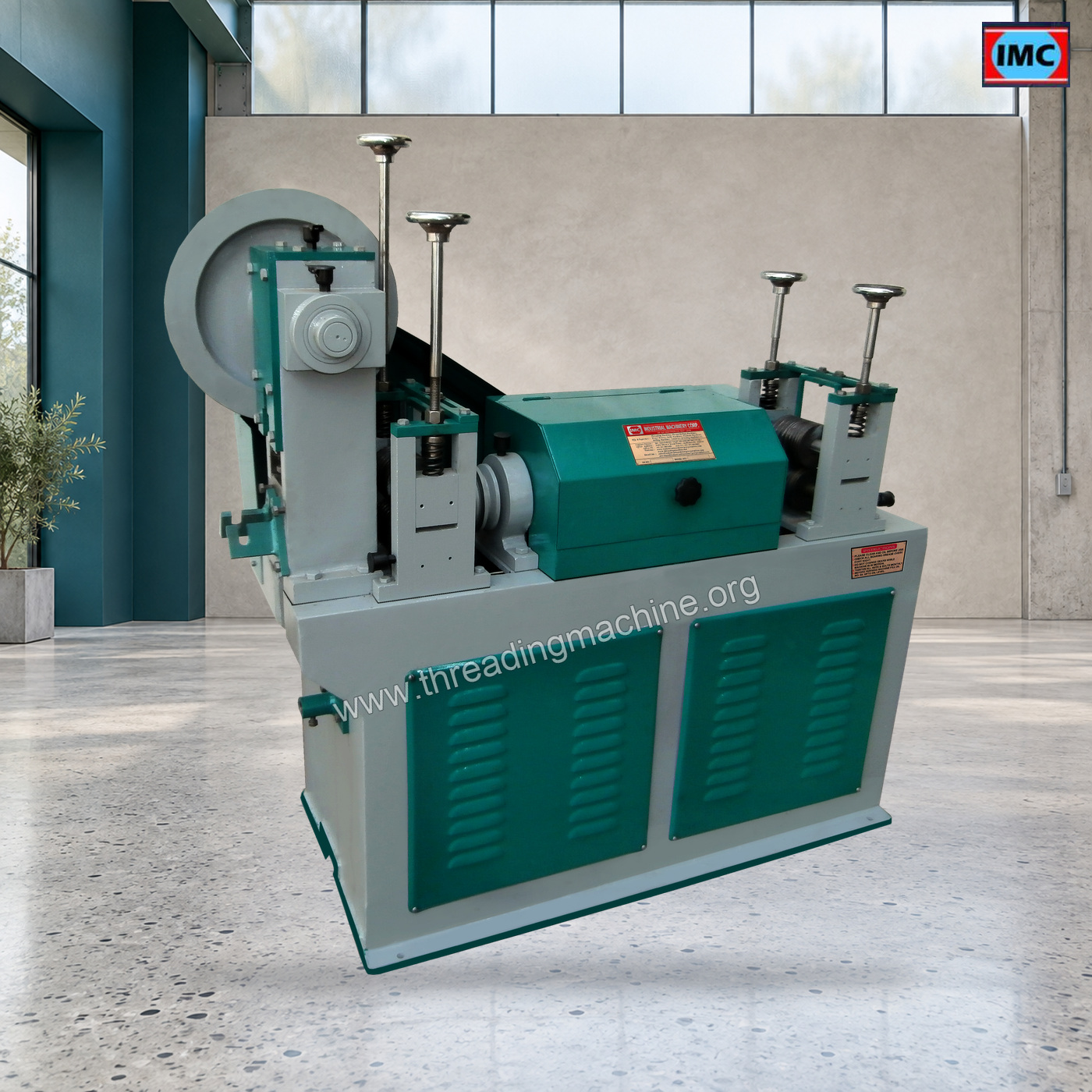

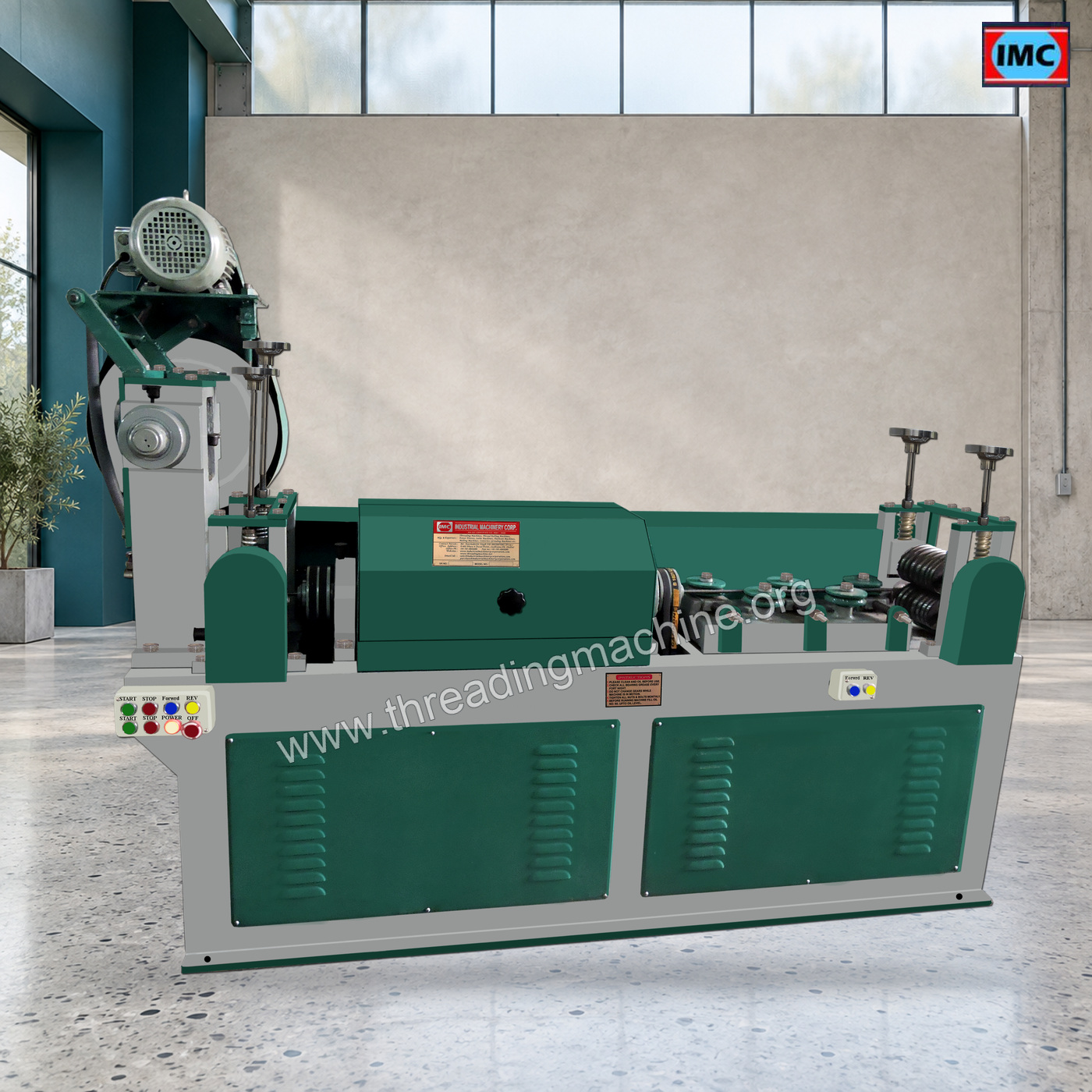

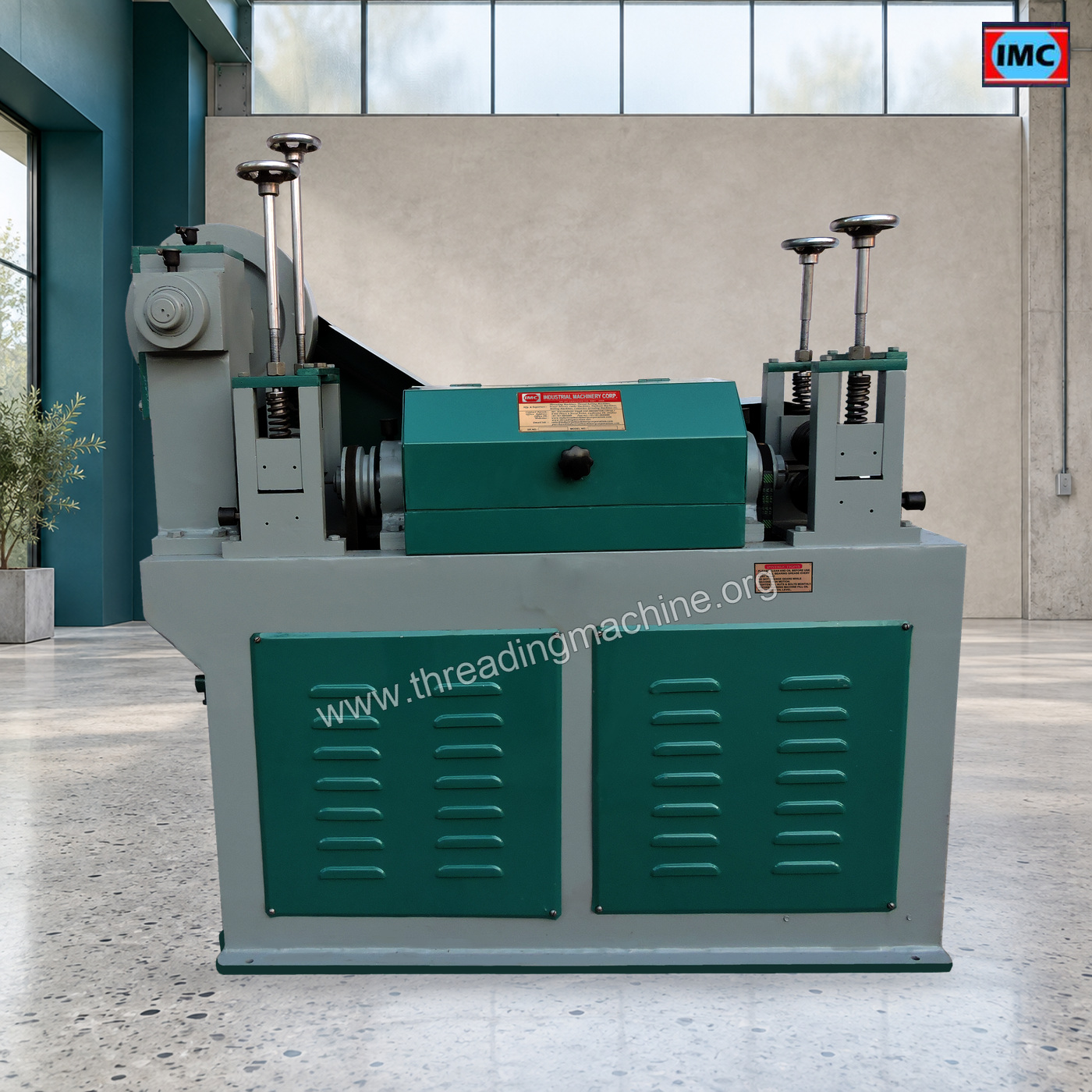

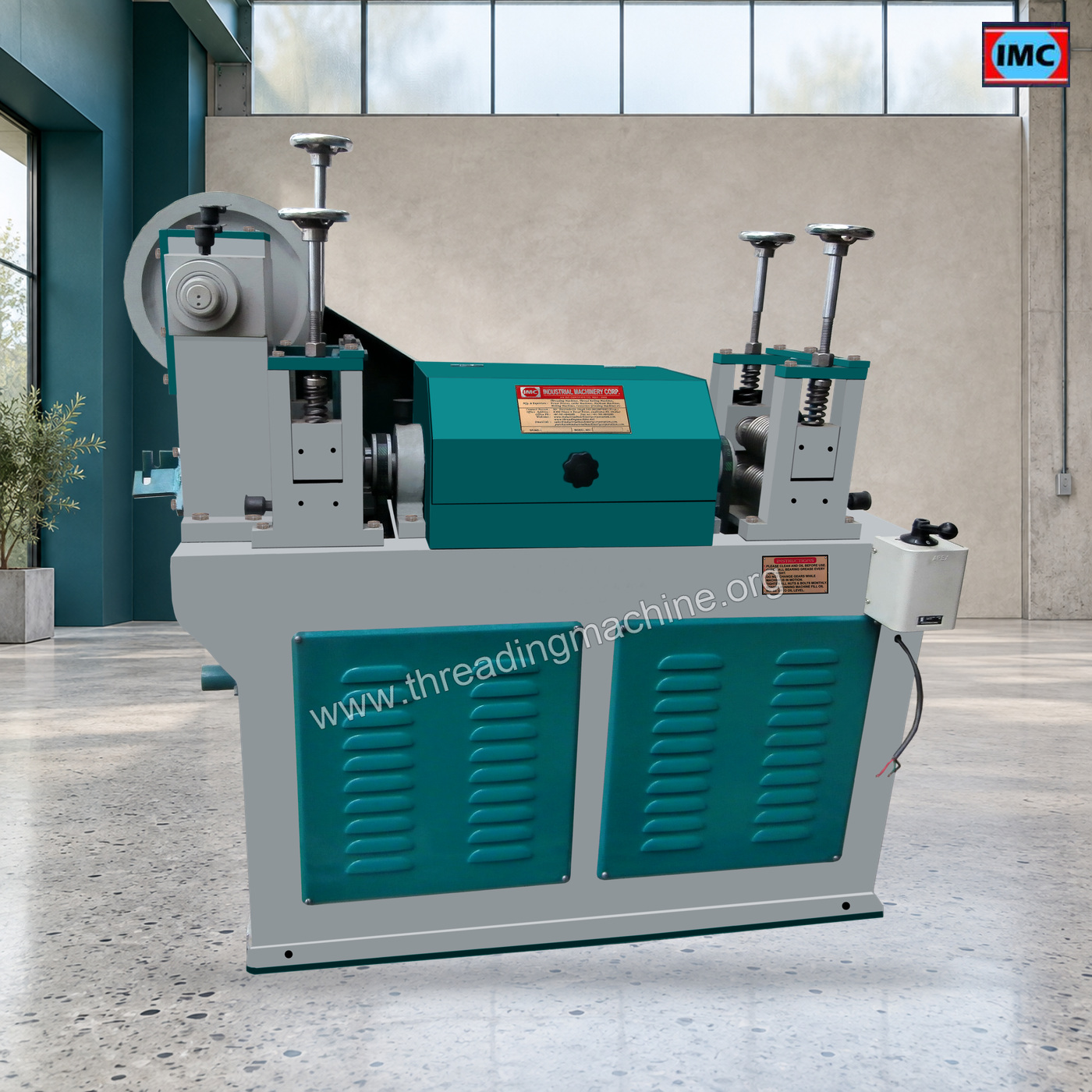

Specifications :IMC-ST-7IMC-ST-8IMC-ST-10IMC-ST-12IMC-ST-13
In Thickness of wire2 to 7mm3 to 8mm4 to 10mm4 to 12mm3 to 13mm
In Length of wire to be cut automaticallyAs per RequirementAs per RequirementAs per RequirementAs per RequirementAs per Requirement
Feeding capacity per min.70" feet70" feet70" feet60" feet60" feet
Power of motor H.P.3 H.P.5 H.P.5 H.P.10 H.P.10 H.P.
Required R.P.M.14401440144014401440
Approx. Weight in Kg.41046055010001200
Floor space required42"x18"48"x20"52"x20"60"x22"

82"x22"

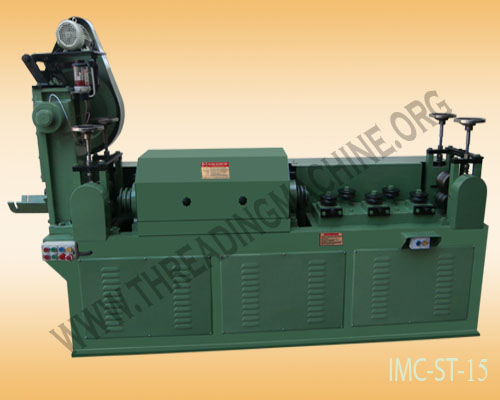

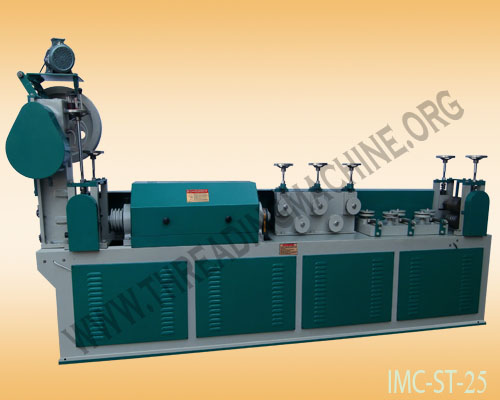

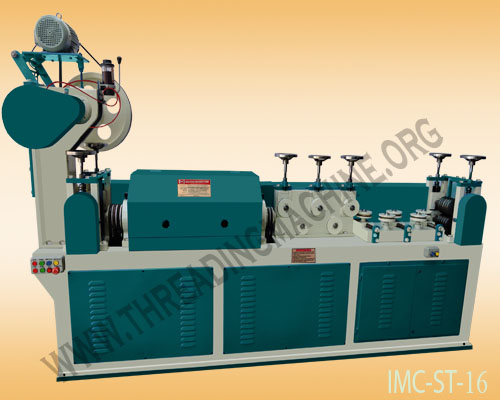

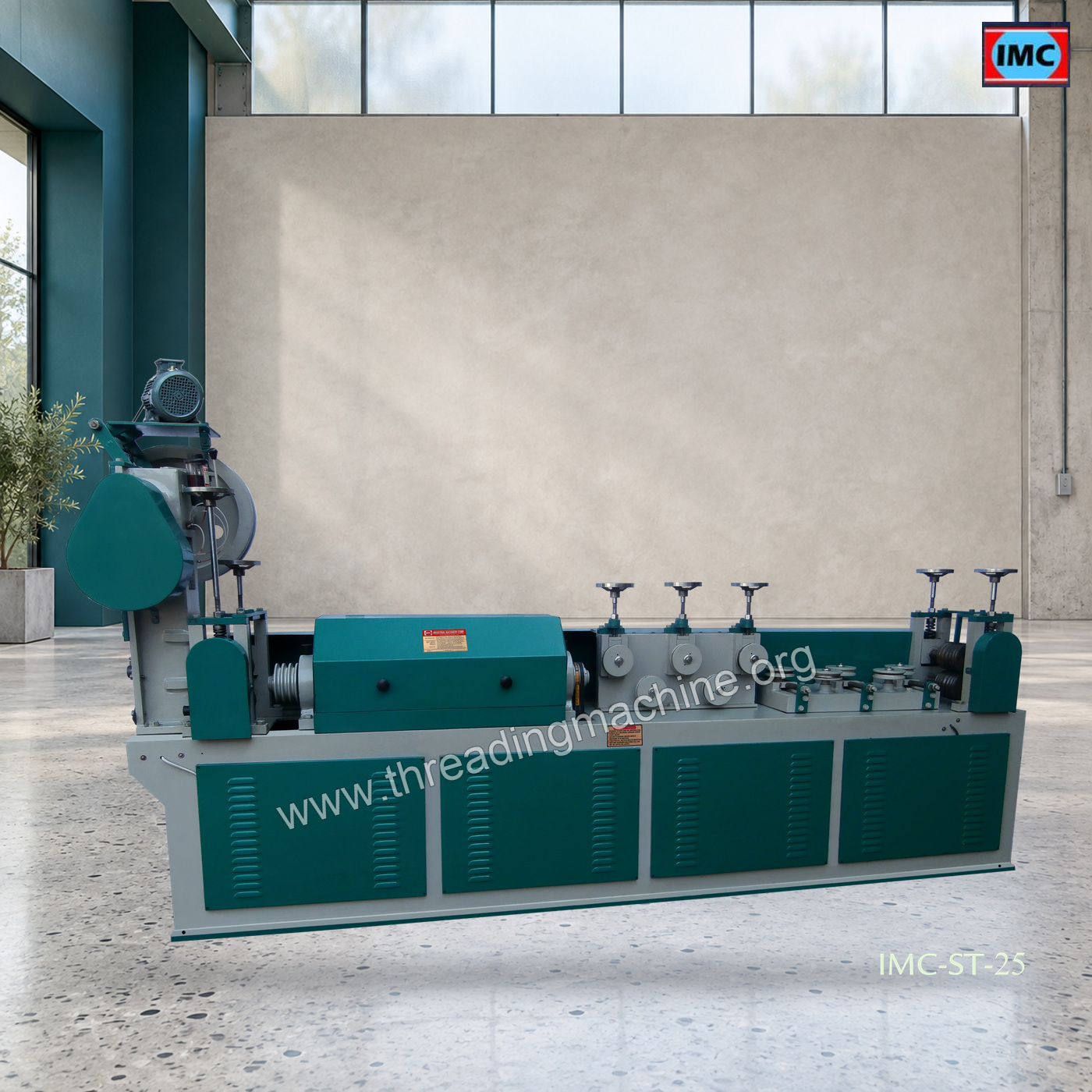

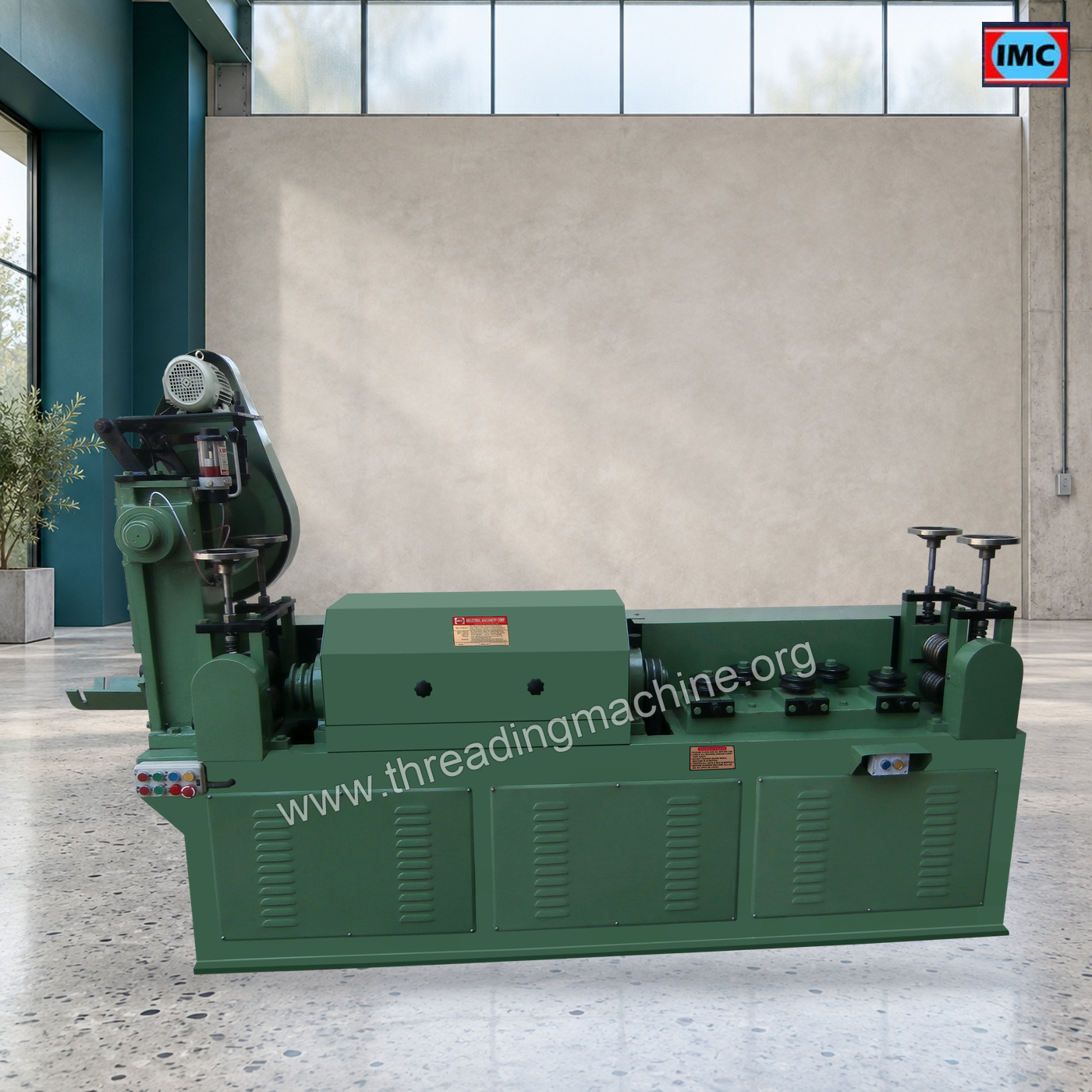

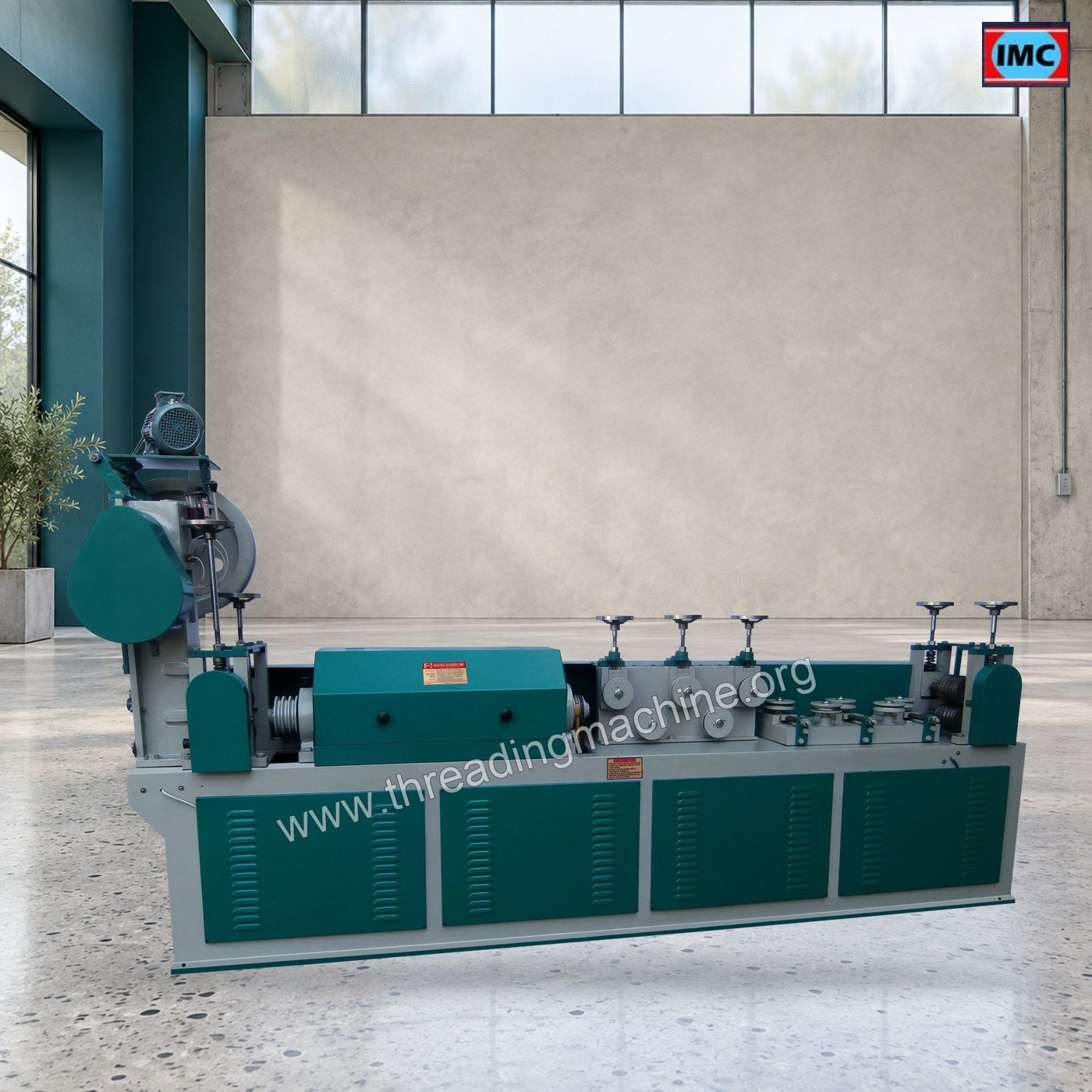

Specifications :IMC-ST-14IMC-ST-15IMC-ST-16IMC-ST-20IMC-ST-25
In Thickness of wire5 to 14mm6 to 15mm8 to 16mm10 to 20mm15 to 25mm
In Length of wire to be cut automaticallyAs per RequirementAs per RequirementAs per RequirementAs per RequirementAs per Requirement
Feeding capacity per min.60" feet60" feet60" feet60" feet40" feet
Power of motor H.P.10 H.P.15 H.P.15 H.P.25 H.P.30 H.P.
Required R.P.M.14401440144014401440
Approx. Weight in Kg.13001500250030003500
Floor space required91"x22"105"x24"125"x24"150"x27"180"x36"


Frequently Asked Questions About Wire Straightening and Cutting Machine

Material behaviour and coil set influence straightening. Give the wire diameter and grade along with the finished length and straightness requirement.

Include wire grade, coil condition and cut length, the finished component drawing and the quantity you intend to produce. These details help IMC review the machine and tooling together.

Wire is straightened and cut into lengths suitable for subsequent processing.
