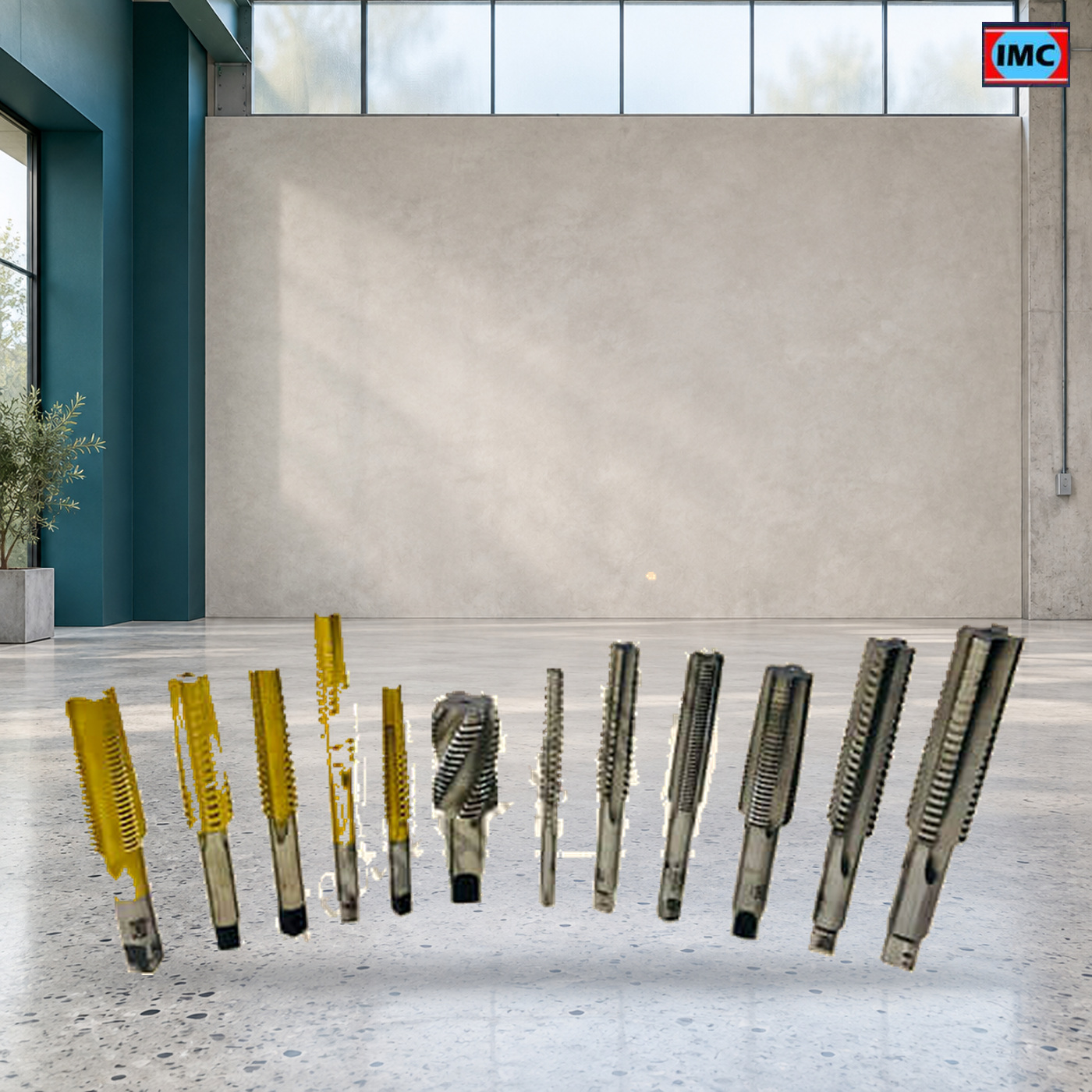

How Threading Taps Cut Internal Threads

This guide explains the working process and selection of Threading Taps Cut Internal Threads.

Understand the working process

The purpose of this configuration is to cut internal threads in appropriately prepared holes using compatible threading taps. Cutting edges on the tap generate the internal thread in the prepared hole; the flute arrangement provides chip clearance for the intended hole form. The process begins with a suitable component or starting stock and a defined result. Before selecting equipment, identify material, hole diameter and depth, blind or through-hole form, thread standard and pitch. These requirements establish the operation to be performed and the information needed for the setup.

Review the setup sequence

The tooling and holding discussion includes tap geometry, holding interface, chamfer or flute suitability and chip clearance. Check compatibility and the supplied operating guidance before starting a new job or changing a component size. Tap selection differs for blind and through holes; provide the complete thread and hole details before ordering. Preparation and any following production stage must be considered separately where the finished component needs additional work.

Check the result and select the model

The component review should cover internal thread size, useful depth and the specified thread-gauge acceptance. Agree the inspection requirements for a representative sample before comparing output estimates. Consult the specifications below and discuss the drawing and material with IMC. Select the available options and use the Quote List to request a configuration with clearly identified tools and accessories. This working overview supports selection; follow the instructions supplied for the actual machine.

Information to send with your enquiry

• Material
• Hole diameter and depth
• Blind or through-hole form
• Thread standard and pitch

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.
