How an Outer Prop Welding Machine Works

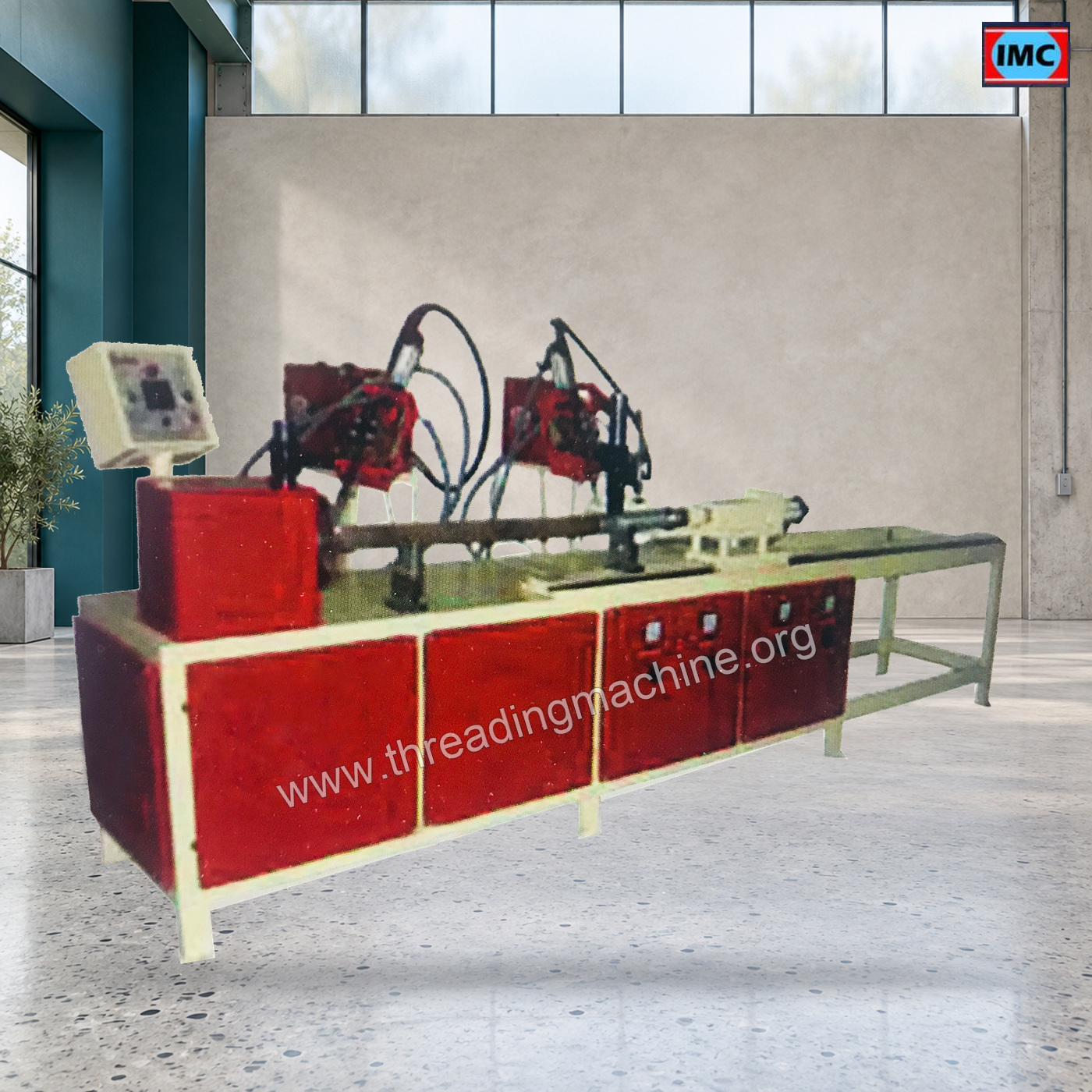

Outer Prop Welding Machine by Industrial Machinery Corporation

Outer Prop Welding Machine by Industrial Machinery Corporation thumbnail

This guide explains the working process and selection of Outer Prop Welding Machine.

Understand the working process

The purpose of this configuration is to weld the specified outer scaffolding-prop pipe connections using suitable fixtures. Fixtures locate the pipe and end component while the welding arrangement follows the defined joint around the outer-prop assembly. The process begins with a suitable component or starting stock and a defined result. Before selecting equipment, identify outer pipe dimensions, plate or sleeve geometry and the assembly weld drawing. These requirements establish the operation to be performed and the information needed for the setup.

Review the setup sequence

The tooling and holding discussion includes locating and clamping fixtures, joint access and the welding arrangement supplied. Check compatibility and the supplied operating guidance before starting a new job or changing a component size. Identify each outer-prop joint in the drawing so that plate and sleeve operations are included explicitly in the offer. Preparation and any following production stage must be considered separately where the finished component needs additional work.

Check the result and select the model

The component review should cover assembly alignment, required weld size and the specified joint inspection. Agree the inspection requirements for a representative sample before comparing output estimates. Consult the specifications below and discuss the drawing and material with IMC. Select the available options and use the Quote List to request a configuration with clearly identified tools and accessories. This working overview supports selection; follow the instructions supplied for the actual machine.

Information to send with your enquiry

Outer pipe dimensions
Plate or sleeve geometry and the assembly weld drawing

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Min And Max Diameter of the Job

Maximum Length Required

Quantity Required

Expected Price

Purchase

Review your selected machine and options in the Quote List before sending your requirement.

VIDEO REFERENCE

Machine Videos Gallery

No product-specific playlist is stored for this item yet. View IMC machine demonstrations and production videos in the main gallery.

View Machine Videos

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

IMC is a leading manufacturer of outer prop welding machines that are designed to provide efficient and high-quality welding solutions for the production of outer props used in construction and scaffolding. The machines are engineered using advanced technology and are capable of welding different types of materials including steel, aluminum, and stainless steel.

The outer prop welding machines by IMC are known for their robust design, high performance, and user-friendly operation. They are equipped with state-of-the-art features such as adjustable welding speed, automatic wire feeding, and adjustable welding current, which enable operators to achieve precise and consistent welds.

In addition to their advanced features, IMC's outer prop welding machines are also designed to be energy-efficient and environmentally friendly. They are equipped with energy-saving components that help to reduce electricity consumption and minimize carbon emissions.

Overall, IMC's outer prop welding machines are an excellent choice for manufacturers looking to increase production efficiency, reduce labor costs, and improve the quality of their products. With their advanced technology, user-friendly operation, and energy-efficient design, these machines are sure to provide a reliable and long-lasting welding solution for any production facility.

Outer Prop Welding Machine Specifications:-

Electric Supply		Single Phase 220 Volt HZ 50/60
Speed		2 to 10 RPM
Motor Drive		AC Inverter Type
Motor		Type AC 220-Volts-3-Phase
Torch Clamping		PNEUMATIC
Length Adjustment		150 to 2400 mm
Dimension		L x W x H 11.3x2.5x5.3 (Foot)

Frequently Asked Questions About Outer Prop Welding Machine

What should an outer-prop welding fixture accommodate?

The fixture must locate the actual tube and attachments consistently. Provide sizes, joint positions and variants to be produced.

What should I send when enquiring about outer prop welding machine?

Include outer tube and attachment drawings, the finished component drawing and the quantity you intend to produce. These details help IMC review the machine and tooling together.

What operation does this outer prop welding machine support?

Outer scaffold-prop components are located and welded with fixtures matched to their joints.
