How Pipe & Rod Tapping Works

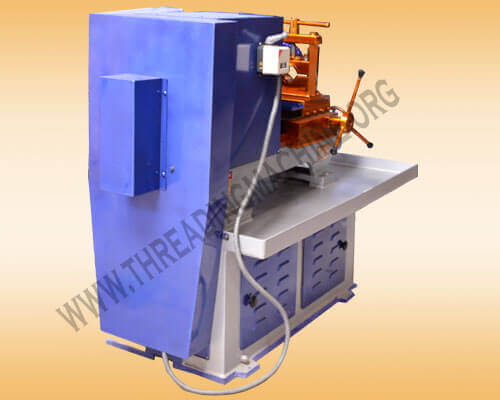

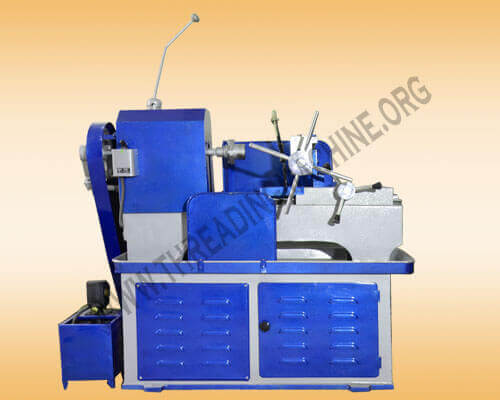

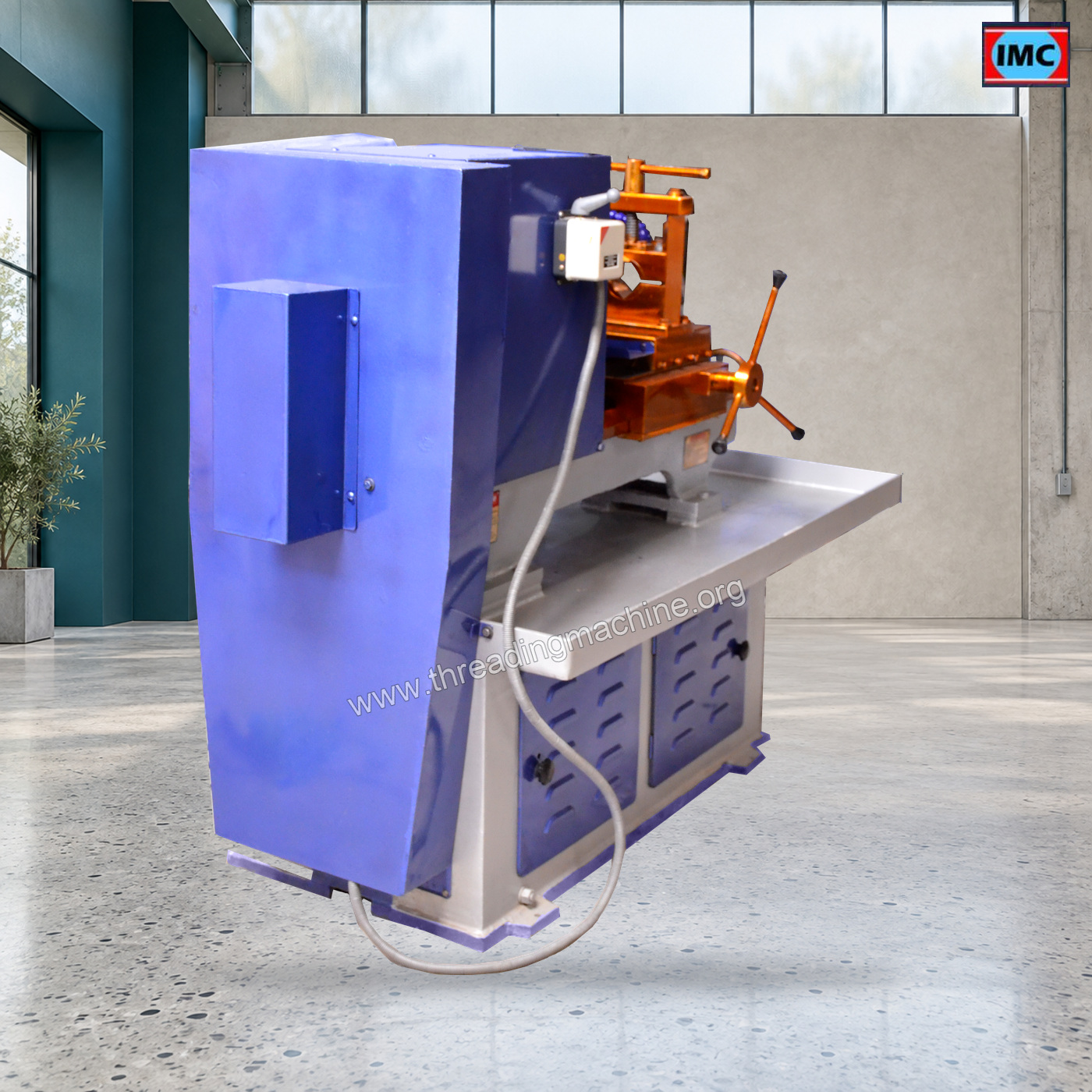

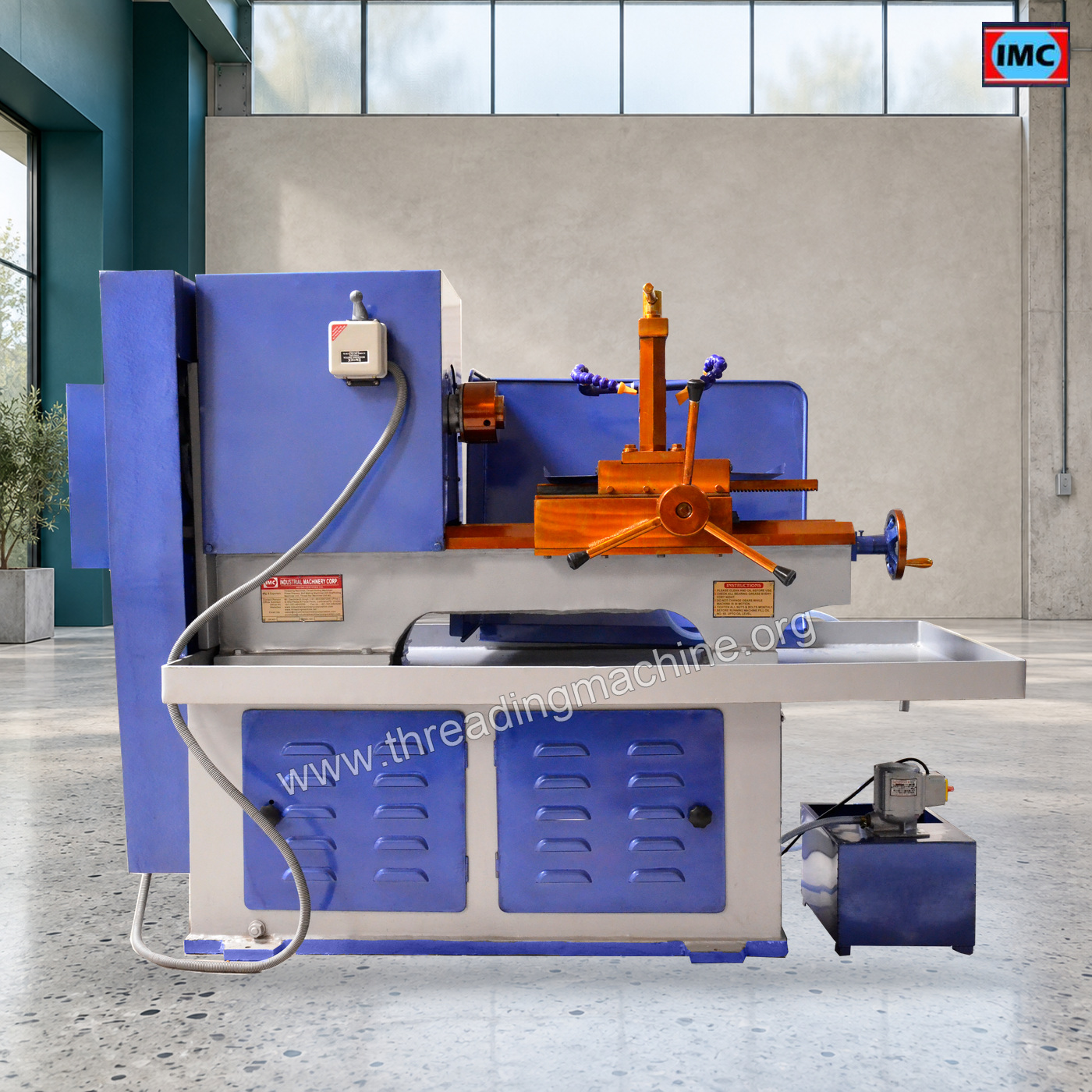

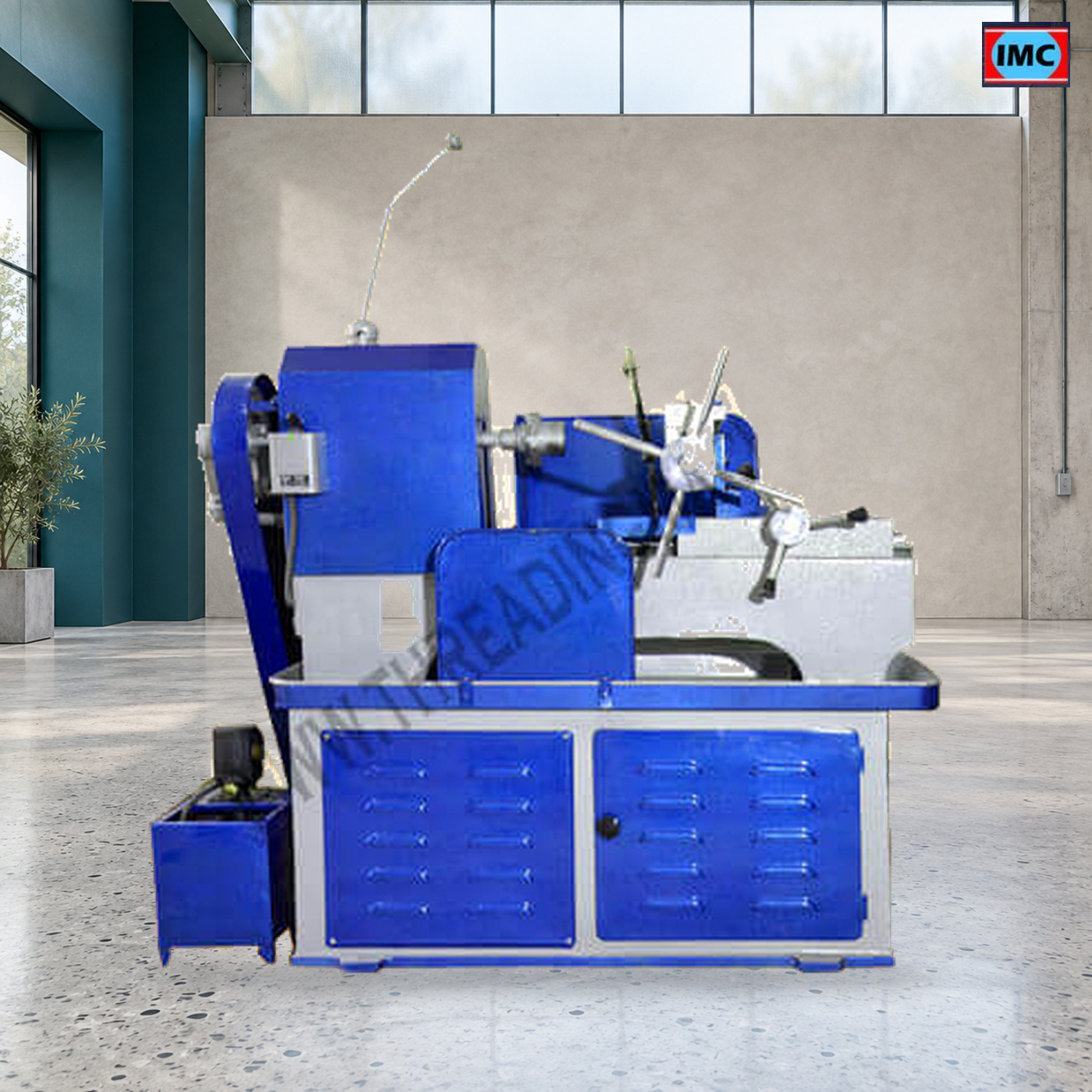

Internal Pipe Thread Cutting Machine by Industrial Machinery Corporation
PRICE & QUOTATION
Starting From US$ 3,500
Choose options
Set quantity
Request quotation

Select the required model and specifications to request your quotation.

This guide explains the working process and selection of Pipe & Rod Tapping.

Understand the working process

The purpose of this configuration is to make internal threads by tapping prepared holes in compatible pipes and bored rod components. The tap advances through the prepared bore as it cuts the internal profile. Its flutes provide space for the chips produced during cutting. The process begins with a suitable component or starting stock and a defined result. Before selecting equipment, identify hole diameter and depth, blind or through-hole form, material, thread standard and pitch. These requirements establish the operation to be performed and the information needed for the setup.

Review the setup sequence

The tooling and holding discussion includes tap selection, tap holding, component alignment and chip-clearance arrangements. Check compatibility and the supplied operating guidance before starting a new job or changing a component size. Rod tapping here means an internal thread in a prepared bore, rather than external threading of a solid rod. Preparation and any following production stage must be considered separately where the finished component needs additional work.

Check the result and select the model

The component review should cover internal thread size, useful depth and acceptance with the specified gauge or mating thread. Agree the inspection requirements for a representative sample before comparing output estimates. Consult the specifications below and discuss the drawing and material with IMC. Select the available options and use the Quote List to request a configuration with clearly identified tools and accessories. This working overview supports selection; follow the instructions supplied for the actual machine.

Information to send with your enquiry

  • Hole diameter and depth
  • Blind or through-hole form
  • Material
  • Thread standard and pitch

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Tags

Threading Machines, Internal Pipe Threading Machine, Threading Taps, Internal Threading tap, internal threading tools, Internal Threading Machine, best manufacturer of threading machine in ludhiana, best internal threading machine
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Available Options


Review your selected machine and options in the Quote List before sending your requirement.

Product Videos

View full playlist on YouTube
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

Internal Pipe Threading Machine

These machines are truly sophisticated and are engineering masterpieces in their own right. The Internal Pipe Threading Machine on offer is manufactured as per industry standards and stands high on parameters of quality and durability. These are fabricated using high-grade raw material, which not only ensures that the machine will be able to resist wear and tear but also prove to be resistant to breakage and abrasion.

IMC machines are truly sophisticated and are engineering masterpieces in their own right. The internal pipe thread cutting machine on offer is manufactured as per industry standards and stands high on parameters of quality and durability. These are fabricated using high-grade raw material, which not only ensures that the machine will be able to resist wear and tear but also prove to be resistant to breakage and abrasion.

A good grade internal thread cutting machine will have a system that is so advanced that little human intervention will be required. This will not only ascertain that the work done is completed with perfection but will also reduce human effort. The way these machines are fabricated, the quality inspection team, ensures that there are no regular breakdowns, during operation.

The Internal Pipe Threading Machine offered by Industrial Machinery Corporation will allow for the cutting of 150mm thread length. The speed in the gearbox is five, while it can produce up to eighty pieces per hour. While these are the basic specification, being a customer-centric company. Industrial Machinery Corporation will also offer the benefit of customization.

Internal Pipe Thread Cutting Machine Specifications:

Model No.  1/2” to 2”1/2" to 3"
Threading length can be cut   150 MM150 MM
Number of speed in gearbox    55
Production per hour    80 Pcs.80 Pcs.
Electrical Motor    3H.P. 960 RPM5 H.P. 960 RPM

Frequently Asked Questions About Internal Pipe Thread Cutting Machine

Tool access, bore diameter and internal thread depth are essential. Send a section drawing showing the thread and surrounding features.

Include bore, internal thread length and access, the finished component drawing and the quantity you intend to produce. These details help IMC review the machine and tooling together.

Internal pipe threads are cut to meet the specified connection geometry.
