How a Bolt Head Trimming Machine Works

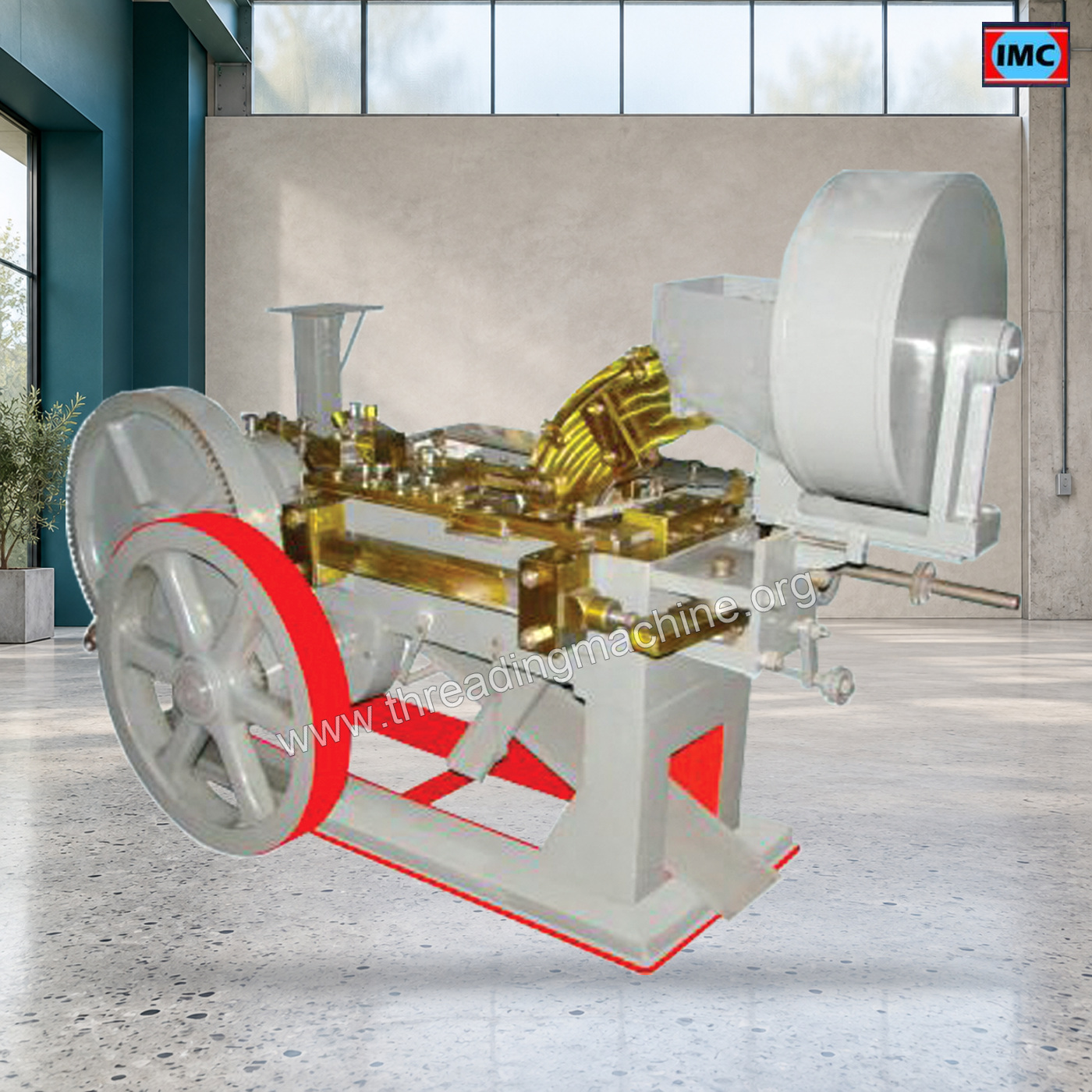

Automatic Bolt Head Trimming and Shank Reducing Machine product view

Automatic Bolt Head Trimming and Shank Reducing Machine product view thumbnail

This guide explains the working process and selection of Bolt Head Trimming Machine.

Understand the working process

The purpose of this configuration is to trim bolt heads and prepare the specified shank reduction with suitable tooling. The specified trimming tools remove excess head material, while the required shank-reducing tooling prepares the agreed shank geometry. The process begins with a suitable component or starting stock and a defined result. Before selecting equipment, identify incoming blank dimensions, finished head profile, shank diameter and material. These requirements establish the operation to be performed and the information needed for the setup.

Review the setup sequence

The tooling and holding discussion includes the trimming or reducing tools required, blank orientation and feeding setup. Check compatibility and the supplied operating guidance before starting a new job or changing a component size. Distinguish head trimming from shank reduction in the drawing and ask which operations the quoted tooling performs. Preparation and any following production stage must be considered separately where the finished component needs additional work.

Check the result and select the model

The component review should cover head dimensions, reduced shank size and the prepared blank for the next operation. Agree the inspection requirements for a representative sample before comparing output estimates. Consult the specifications below and discuss the drawing and material with IMC. Select the available options and use the Quote List to request a configuration with clearly identified tools and accessories. This working overview supports selection; follow the instructions supplied for the actual machine.

Information to send with your enquiry

Incoming blank dimensions
Finished head profile
Shank diameter and material

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Purchase

Min And Max Diameter of the Job

Maximum Length Required

Model No You Are Interested

Expected Price

Review your selected machine and options in the Quote List before sending your requirement.

VIDEO REFERENCE

Machine Videos Gallery

No product-specific playlist is stored for this item yet. View IMC machine demonstrations and production videos in the main gallery.

View Machine Videos

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

Automatic Bolt Head Trimming and Shank Reducing Machine

IMC Automatic Head Trimming Machine is to make the Head of Bolt hexagon or square as per requirement. The Bolt Head Trimming and Shank Reducing Machine is fully automatic and easy to operate. Bolt head trimming and shank reducing machinery is made to fulfill various requirements with Bolts by the customers.

Bolt Head Trimming and Shank Reducing Machine Specifications:

Model No.	Length Of Bolt	Dia. Of Bolt	Production Per Minute	Power Required (H.P x RPM)
IMC-HTM-1	1/2" - 1"	80-85	80 - 90	1 x 1440
IMC-CHM-2.5	1/2" - 2"	70-75	60 - 80	3 x 1440
IMC-CHM-3	3/4" - 3"	60-65	50 - 60	5 x 1440
IMC-CHM-4	1" - 4"	45-50	40 - 45	7.5 x 1440
IMC-CHM-5	1.5" - 5"	35-40	30 - 35	15 x 1440
IMC-CHM-6	2" - 6"	25-30	25 - 30	20 x 1440

Frequently Asked Questions About Automatic Bolt Head Trimming and Shank Reducing Machine

Can trimming and reducing use the same tooling for every bolt?

Tooling depends on head form and shank dimensions. Identify each bolt drawing and ask which tooling changes are needed across the range.

What should I send when enquiring about automatic bolt head trimming and shank reducing machine?

Include incoming blank and final bolt dimensions, the finished component drawing and the quantity you intend to produce. These details help IMC review the machine and tooling together.

What operation does this automatic bolt head trimming and shank reducing machine support?

Bolt blanks are processed for the required head trimming and shank geometry.
